2003 FADAL TRM

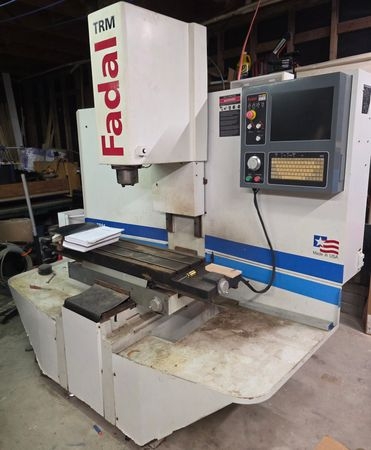

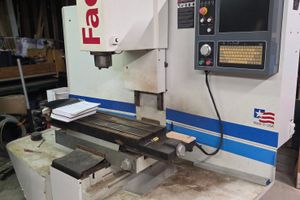

2003 Fadal TRM CNC Vertical Machining Center (Tool Room Mill)

This 2003 Fadal TRM is a compact, rigid 3-axis CNC mill built for tool room and small-part production work. Serial #012003105670, can be powered by 240 VAC 3-phase or 120 VAC, and Made in the USA.

Specifications:
X Axis Travel: 30"
Y Axis Travel: 14"
Z Axis Travel: 14"
Table Size: 35" x 12" (3 T-slots)
Floor to Table: 34.5"
Max. Weight on Table: 500 lbs
Spindle: CAT/BT 40 taper, 5 HP, up to 4,000 RPM
Rapid Feed Rate (X/Y/Z): 200 ipm
Cutting Feed Rate: 0.01–200 ipm
Machine Dimensions: 88"W x 50"D x 92"H
Machine Weight: 3,500 lbs
Electrical: 240 VAC, 3-phase, 50/60 Hz, 15A, 6.4 kVA
Control: Fadal CNC (Multi Processor)

Known Issue: Machine is currently displaying a fault on the control — Error #26, Y-axis motor overload, triggering an emergency stop. Sold as-is; buyer should be prepared to diagnose/service the Y-axis drive or motor overload circuit.

A solid, no-nonsense machine ideal for shops needing reliable small-footprint CNC milling capability, priced accordingly to reflect its current condition.
