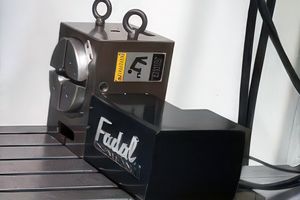

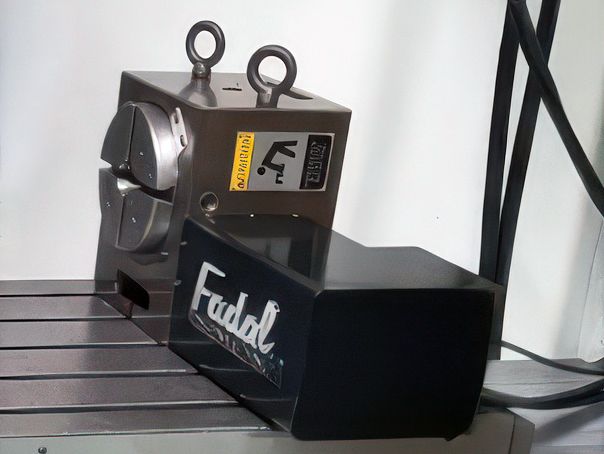

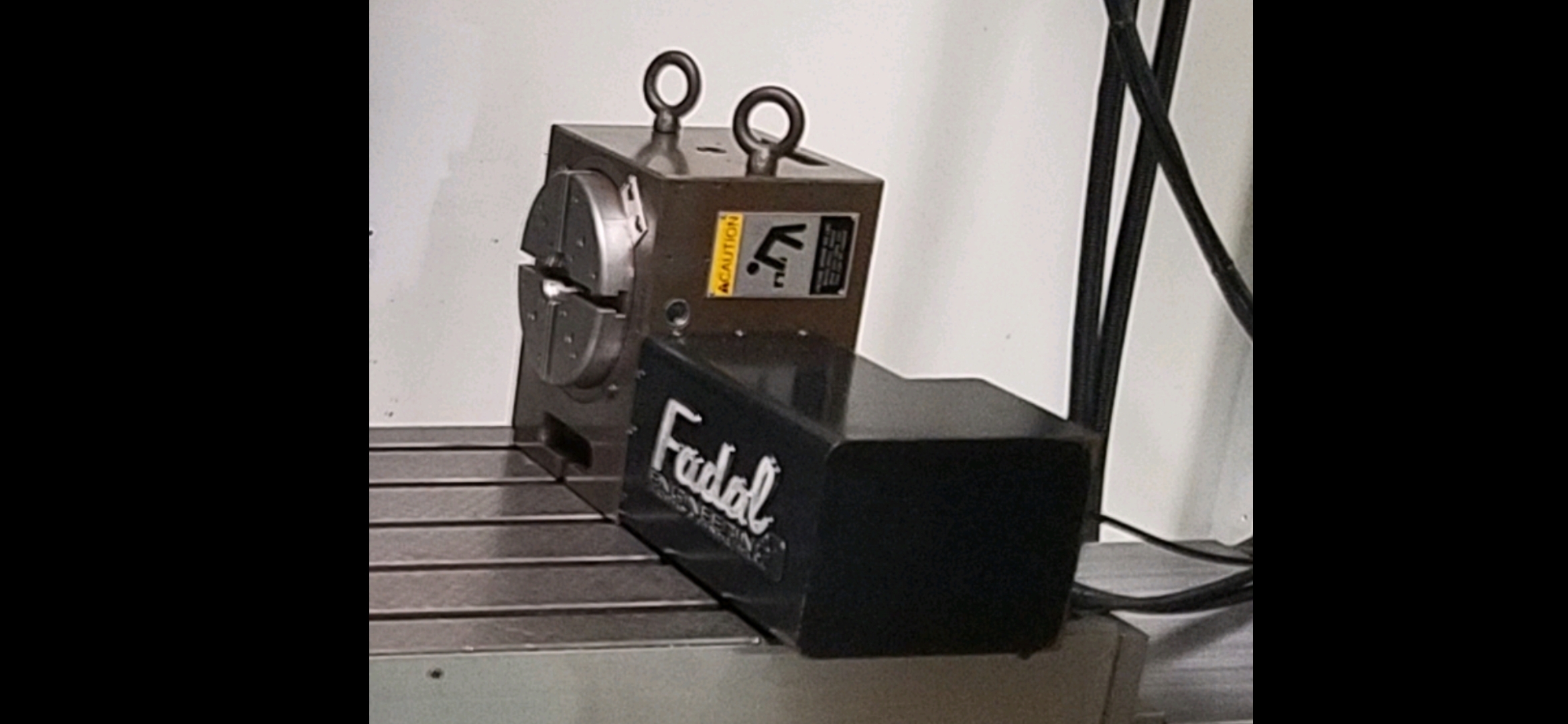

2003 FADAL VH65 ROTARY HEAD

Fadal Model VH65 6.5" Programmable 4th Axis Rotary Table With air brake

Description:

6.5" T-Slotted Faceplate, A/C Servo Drive Motor. REPLACED

Main Unit Approx Weight: 170.00 lbs

Main Unit Dimensions (in inches): Length: 21.00" Width: 11.00" Height: 11.00"

Specs:

Faceplate Diameter: 6.5"

Torque (ft-lb): 150 Ft LB Brake Torque

Center Height: 6 1/2"

Resolution (Deg.): 90/1

Motor: AC Servo Drive

Number of T-Slots: 4

Hole Thru Spindle: 1.37"

Thru Hole: 1 1/4"

The Fadal VH65 is a 6.5-inch, 4th-axis programmable rotary table designed for Fadal CNC vertical machining centers. It features a 6.5-inch faceplate, 6.5-inch center height, 150 ft/lb brake torque, 1.37-inch thru-hole, and a 180 lb load capacity. It utilizes a AC servo motor and pneumatic brake.
