Used FADAL VMC6030HT Vertical Machining Center

Pre-owned FADAL VMC6030HT 2004 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Fadal CNC Multiprocessor control. This CNC Machine is currently located in Michigan. This FADAL Vertical Machining Center is available for a limited time.Get a quote today on this VMC6030HT before it's gone.

X Axis Travel: 60"
Y Axis Travel: 30"
Z Axis Travel: 30"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Table Size: 62" x 30"
Max Table Load: 4,120 LBS
Spindle Motor: 22.5 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40 CT
Tool Changer: 21 ATC
Spindle Nose to Table: 5.5” – 35.5”
Dimensions: 159” x 118” x 128”
Weight: 17,000 LB LBS

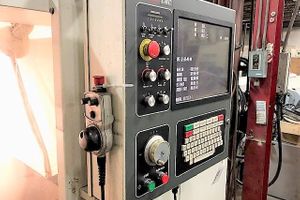

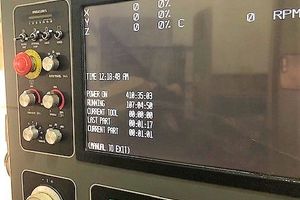

Fadal CNC Multiprocessor
Coolant Thru Spindle
Rigid Tapping
Hydro-Sweep/Chip Conveyor
High Torque
