Seller Needs:
$23,000|
321
|
1

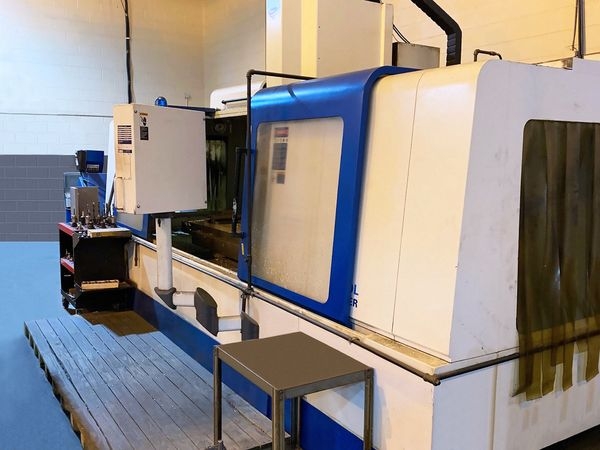

Pre-owned FADAL VMC8030HT 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This FADAL Vertical Machining...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 80"
Y Axis Travel: 30"
Z Axis Travel: 30"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Max Table Load: 4,120 LBS
Spindle Motor: 22.5 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Rapid Traverse Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.5? – 35.5?
Spindle Power: 20 HP
Max Torque: 230ft-lb @ 500RPM
Max Tool Weight: 15 lbs
Max Tool Dia: 6?
Max Tool Length: 15?
Tool Changing Time: 4.2 Seconds
Air Required: 100 psi, 4 scfm
Power: 480v / 1 kva / 3-Phase
Dimensions: 210" x 104" x 120"
Weight: 18,800 LBS
Y Axis Travel: 30"
Z Axis Travel: 30"
Rapid Rate X Axis: 787 IPM
Rapid Rate Y Axis: 787 IPM
Rapid Rate Z Axis: 787 IPM
Max Table Load: 4,120 LBS
Spindle Motor: 22.5 HP
Spindle Speed: 10,000 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Rapid Traverse Rates: 400 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 5.5? – 35.5?
Spindle Power: 20 HP
Max Torque: 230ft-lb @ 500RPM
Max Tool Weight: 15 lbs
Max Tool Dia: 6?
Max Tool Length: 15?
Tool Changing Time: 4.2 Seconds
Air Required: 100 psi, 4 scfm
Power: 480v / 1 kva / 3-Phase
Dimensions: 210" x 104" x 120"
Weight: 18,800 LBS
Options:
Fadal
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
5 Axis
Comes with 4th and 5th Axis Tables
Chip Conveyor
Programmable Coolant
4th Axis Rotary Table
5 Axis
Comes with 4th and 5th Axis Tables
Seller:
KcT386
Location:
USA
