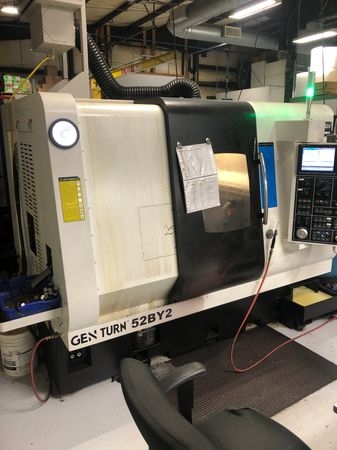

2017 GANESH CYCLONE52BY2

ID:13086
Brand:GANESH
Model: CYCLONE52BY2
Year:2017
Category:CNC Lathe
Location:Maine

Located In Maine

SHIPPING COST :

Hello!

Machine Overview

Specs:

9-AXIS CNC LATHE with Interference-Free Simultaneous Machining Efficiency Up to 40% more production output!

CYCLONE 52-BY2 9-Axis CNC LatheSimultaneous Machining–Front & Backside
•2.0” Main Spindle Bar Capacity
•2.0” Subspindle Bar Capacity (2.0” pass-through capability)
•15-Horsepower 6,000-RPM Integral Main Spindle
•15-Horsepower 6,000-RPM Integral Sub Spindle
•Full Contouring “C” Axis on main spindle & subspindle
–not just positioning!
•36-Tool positions, with 18-Driven Tools, 12-Driven Angle Tools

OP-#10 Machining on Main-Spindle
SPINDLE –A2-5, 15-HP, 6,000 RPM, 2.0” Bar Capacity
•C-axis with full contouring capability and 360,000 indexing positions
•Dead-Length Collet Chuck –uses Traub 52 Collets (same as sub-spindle)
•5-Axis Machining Capability –X1, Y1, Z1, C1, & B-Axis (B-Axis positioning only)
•TOOLING -12-Angular Driven Tools, 5-Turning Tools, 5-Drill/Bore Tools
•6-ER-20 ½” capacity Angular or Cross-Working Live Tools
•6-ER-20 ½” capacity Angular or End-Working Live Tools
•5-Turning Stations –20mm tools, or ¾” tools with shims
•5-Static End Working Drill /Bore /Tap Tools
–using ½” capacity ER-20 Collet Chucks or 25mm tool bushings
•All Gear-Driven Live Tooling –No troublesome belts
•Rigid Tapping on all Live Tools

Bar Capacity: 2"
Spindle Motor: 15 HP
Dimensions: 134" x 85" x 82"
Weight: 14,000 LBS

Options:

Mitsubishi M700 CNC Control
Chip Conveyor
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis

Description:

Pre-owned GANESH CYCLONE52BY2 2017 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Maine. This GANESH CNC Lathe is available for a limited time. Get a quote today on this CYCLONE52BY2 before it's gone.
