Machine Overview

Specs:
GENERAL SPECIFICATIONS:
Number of Axes: 8-Axis X1,Y1,Z1,X2,Y2,Z2,C1,C2)

Main Spindle:
Barstock Diameter: 23mm (3/4")
Spindle Speed: 10,000 RPM
Spindle Motor: 5 HP
Distance Between Spindles: 23.6" (600mm)
Spindle Centerline Height: 42" (1060mm)

Main Spindle Tooling:
OD Turning Tool Holders: 6 - 12mm
ID Internal Tool Holders: 4 - 22mm
ID Deep Hole Drill Positions: 2 - 22mm
Cross Slide Live Tools: 5 - ER16 (8,000 RPM)
Drilling/Tapping Capacity: 10mm Drilling / M8 Tap
Cross Drilling/Tapping Capacity: 8mm Drilling / M6 Tap

Sub-Spindle:
Spindle Speed: 8,000 RPM
Sub-Spindle Motor: 5 HP
Collet Style for Main/Sub Spindle: Hardinge TF-25S/ S&M TS-25
Barstock Diameter: 23mm (3/4")
Workpiece Length for Front Ejection: 110mm

Sub-Spindle Tooling:
OD Turning Tool Holders: 3 - 10mm
ID Internal Tool Holders: 4 - 22mm
ID Internal Tool Holders: 3 - ER-16 Fixed Tools (3/8")
Sub Spindle Axiel Live Tools: 3 - RE-16 Live Tools (4,000 RPM)
Backworking Machining Length: 6.1" Turning Length / 3.14" Boring
Drilling/Tapping Capacity: 10mm Drilling / M8 Tapping
Cross Drilling/Tapping Capacity: 8mm Drilling / M6 Tapping
Options:
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
Mist Buster
Edge Scout 320 Bar Feeder
Description:

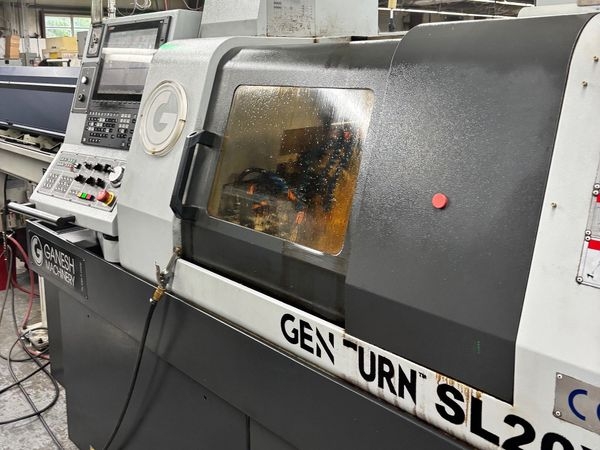

This 2017 GANESH GENTURN SL20Y2 CNC Lathe is a great option for those looking to upgrade their machining operations. It is equipped with several valuable features and enhancements that enhance its performance and capabilities.

Key options and upgrades include a Chip Conveyor that ensures smooth chip management during operation. The Bar Feeder is included, allowing for automatic feeding of bars, aiding in continuous production runs.

A Parts Catcher is part of this setup, efficiently handling finished parts without requiring manual intervention. Live Tooling extends the lathe's capabilities to perform multiple operations, such as drilling and milling, in a single setup.

The Sub Spindle adds further versatility, allowing for complex part geometries and simultaneous part handling, while the Y Axis movement offers enhanced machining possibilities by enabling off-center operations.

This lathe also features 5 Axis capabilities, broadening the scope for intricate and complex part production. The Mist Buster helps keep the work area clean by removing mist, thereby providing a safer and cleaner work environment.

Included in this package is the Edge Scout 320 Bar Feeder, which further complements the bar feeding capabilities, improving efficiency and providing a seamless workflow.

The 2017 GANESH GENTURN SL20Y2 CNC Lathe with these options and upgrades is well-suited for various machining tasks. It's an invaluable addition to any production floor, poised to support diverse and demanding machining applications.
