Used GRIZZLY G4003G Manual and Other Machining

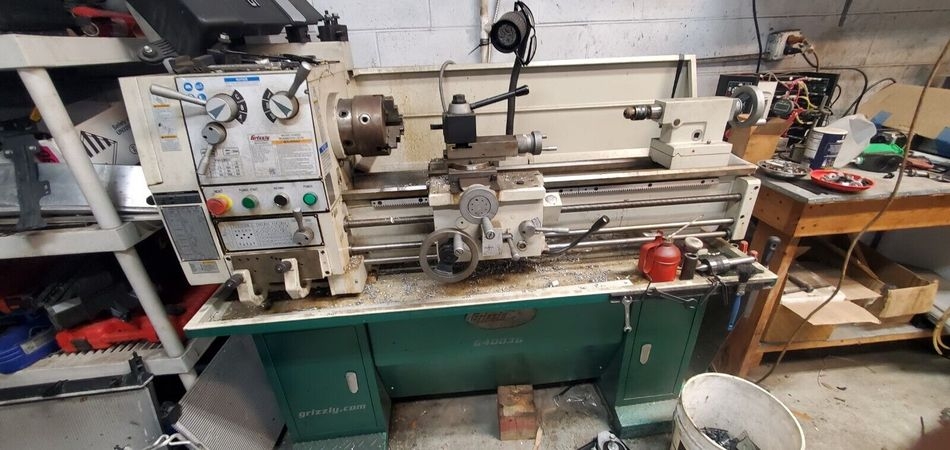

Pre-owned 2018 GRIZZLY G4003G Manual Lathe is an excellent tool for individuals and businesses looking to undertake metalworking tasks. Made by Grizzly, a well-regarded brand for high-quality machinery, the G4003G is both durable and reliable. The G4003G has a maximum swing over bed of 12 inches and a distance between centers of 36 inches, which means it can handle larger workpieces. The lathe's spindle can accommodate a 1.57-inch diameter through-hole, allowing you to work with bigger stock. Moreover, the spindle is equipped with a camlock that enables quick and easy tool changes. The lathe has a maximum spindle speed of 2000 RPM, thanks to its powerful 3 HP motor. You can also vary the speed to suit specific tasks by simply adjusting the four ranges available. The machine also employs precision-ground and hardened D1-4 camlock spindle and bedways, ensuring maximum stability and accuracy. The G4003G manual lathe features a chip tray that captures debris, making it easy to clean up after use. You can also access the gearbox for lubrication through a removable cover on the apron. The Grizzly G4003G also comes with several accessories, including a steady and follow rest. These accessories enable efficient and precise metalworking, regardless of the complexity of the task. With a manual lathe like the G4003G, you can apply a variety of works, including facing, turning, drilling, and boring. This lathe is one of the most versatile tools in the market, making it an ideal option for both novice and experienced metalworkers alike. The original owner has lightly used it, hence still portrays few signs of wear and tear. In summary, if you have been searching for a quality manual lathe for metalworking tasks, this used 2018 GRIZZLY G4003G should be at the top of your list. Its outstanding features, steady and harden bedways, versatile accessories, and powerful motor makes it a machine that delivers impressive results, yet simple to use. It is a cost-effective alternative to a new model, and with its efficiency and capacity, it is a worthy investment for your metalworking needs.

Specs:
SPECIFICATIONS:
Motor: 2 HP, 220V, single-phase, 8.5A
Swing over bed: 12"
Distance between centers: 36"
Swing over saddle: 11-11/32"
Swing over cross slide: 7"
Spindle bore: 1-9/16" (40mm)
Spindle nose taper: MT#5
Spindle nose: D1-5 Camlock
Spindle speeds: 9, 70–1400 RPM
Compound travel: 3-1/4"
Carriage travel: 30-1/2"
Cross slide travel: 6-1/4"
Tailstock barrel taper: MT#3
Tailstock barrel travel: 4"

FEATURES:
High-quality NSK spindle bearings
Cuts 4-112 Standard TPI and 0.2-4.5 Metric
Cuts LH threads
Full-length splash guard
Spindle on/off reverse switch on carriage
LED work light
Socket for tailstock lock
Heavy-duty steel stand
Cast-aluminum gear cover

STANDARD EQUIPMENT:
6" 3-Jaw chuck with 2-piece reversible jaws
8" 4-Jaw chuck with reversible jaws
10" faceplate
Steady rest with roller tips
Follow rest with roller tips
Toolbox
Quick-change tool post with one tool holder
(2) MT#3 dead centers (1 carbide tipped)
(1) MT#3 live center
1/2" chuck w/ MT#3 arbor
Dimensions: 68" x 23" x 55"
Weight: 1,330
Options:
Tailstock
Price:
$5,990
$4,500
