Machine Overview

Specs:
Bar Capacity: 1"
Chuck Size: 4"
Spindle nose:
5c Collet Type
Spindle Speed: 6,000 RPM
Spindle Motor: 5 HP
X Axis Travel: 12"
Z Axis Travel: 8"
Rapid Rate Z Axis: 757 IPM
Turret Tools: 8 Station
Rapid Rate X Axis: 757 IPM
Max Turning Dia: 5"
Max Turning Length: 12"
Max Swing: 11"
Max Cutting Diameter: 5"
Max Cutting: 500 IPM
Max Thrust X: 1149 lbf
Max Thrust Z: 1149 lbf
Dimensions: 78" x 62" x 80"
Weight: 2,020 LBS
*Machine appears to have never cut a chip*
Options:
Eight Position Indexable Turret
Coolant System
Operates with Single Phase or Three phase Power
3-Jaw Chuck
Description:

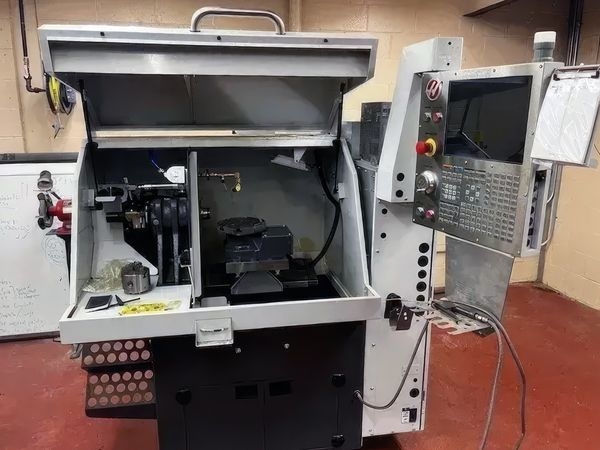

This 2017 HAAS CL1 is a compact lathe designed for high precision and productivity. It's an ideal piece for any workshop in need of a durable machine that offers solid performance in a smaller footprint.

The lathe features a swing over cross slide of 11 inches and a swing over table measuring 4.95 inches. With a chuck size of 4 inches and a maximum cutting diameter also at 4.95 inches, this machine provides ample capacity for various tasks. Its bar capacity is 1.0 inch, and it is equipped with a 5c Collet Type spindle nose and a nose thread of 2-3/16"-10, making it versatile for different machining operations.

The machine’s max speed is 6000 RPM, which can handle demanding jobs with ease. Weighing approximately 1,950 pounds, the lathe is sturdy and stable during operations. Additional features include a 5C collet closer, a 3-jaw chuck, and an eight-position indexable turret. These components allow for convenient setup and swift tool changes.

Moreover, the coolant system ensures that the workpiece and tools are kept at optimal temperatures, enhancing machining accuracy and tool life. The lathe is powered by a 5-horsepower spindle motor, and it can operate on single-phase or three-phase power, offering flexibility in various shop environments.

This machine is a robust choice for anyone in need of a lathe that combines compact size with substantial capability. It’s a solid addition for operations where efficiency and space-saving are priorities.
