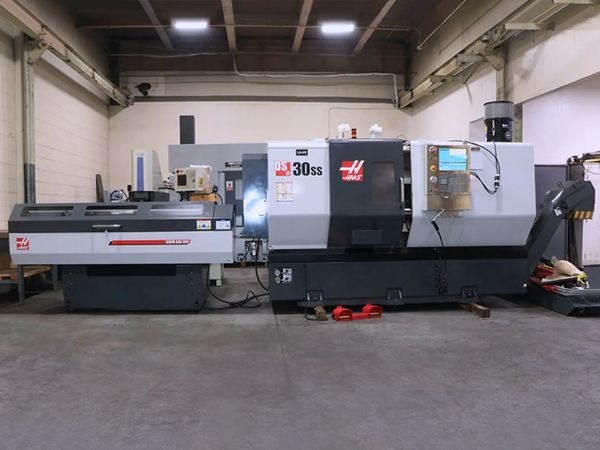

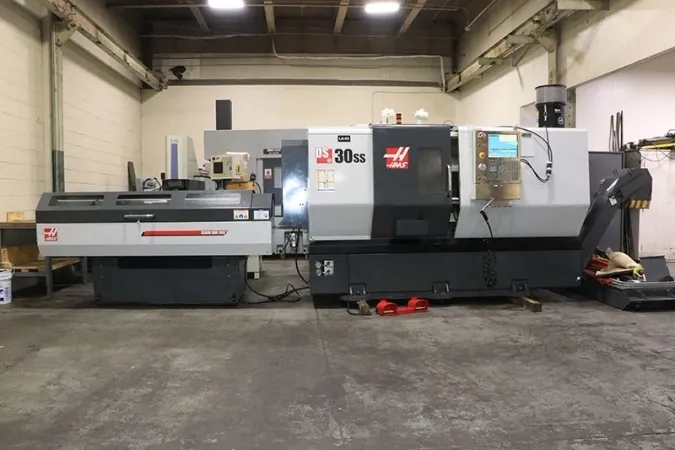

2012 HAAS DS30SS

Bar Capacity: 2"
Chuck Size: 8.3"
Spindle Speed: 4,800 RPM
Spindle Motor: 20 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 1 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 945 IPM
Max Turning Length: 26"
Max Swing: 31.75"
Weight: 12,200 LBS
SPECIFICATIONS:


SWING OVER BED ........................ 31.75"


SWING OVER CROSS SLIDE ................ 20.75"


MAXIMUM TURNING DIAMETER .............. 16"


MAXIMUM TURNING LENGTH ................ 26.11"


X-AXIS TRAVEL ......................... 12.5"


Z-AXIS TRAVEL ......................... 26"


SPINDLE SPEED, MAIN/SUB SPINDLE ....... 4,800 RPM


SPINDLE BORE .......................... 2.44"


SPINDLE NOSE, MAIN .................... A2-6


SPINDLE MOTOR, MAIN ................... 30 HP


SPINDLE NOSE, SUB ..................... A2-5


SPINDLE MOTOR, SUB .................... 20 HP





EQUIPPED WITH:


HAAS CNC CONTROL


MAIN SPINDLE & SUB-SPINDLE


12-STATION TURRET WITH 24-TOTAL POSITIONS


HAAS BARFEEDER - MODEL BAR 48B


TOOLSETTER


ROYAL QUICK-GRIP 42, A2-6 COLLET CHUCK ON MAIN SPINDLE


ROYAL QUICK-GRP. 42, A2-5 COLLET CHUCK ON SUBSPINDLE


AUTO CHIP BLAST


HIGH PRESSURE COOLANT


RIGID TAPPING


SPINDLE ORIENTATION


PARTS CATCHER


HENNIG CHIP CONVEYOR


ROYAL MIST MIST FILTER


MISCELLANEOUS TOOLING


SPINDLE LINERS

Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Sub Spindle
