$44,000|
29
|
0

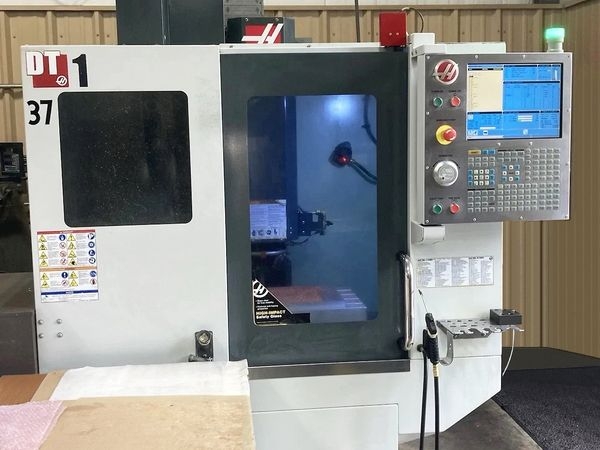

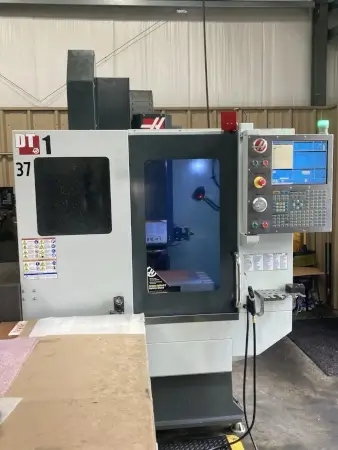

This 2015 HAAS DT1 is a versatile piece of equipment, ideal for your machining needs. Made for small spaces, this machine offers high-speed drilling and tapping capabilities that suit a variety of tasks in a compact footprint...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 20"
Y Axis Travel: 16"
Z Axis Travel: 15.5"
Rapid Rate X Axis: 2,400 IPM
Rapid Rate Y Axis: 2,400 IPM
Rapid Rate Z Axis: 2,400 IPM
Max Table Load: 250 LBS
Spindle Motor: 15 HP
Spindle Speed: 12,000 RPM
Spindle Taper: BT 30
Tool Changer: 20 ATC
Max Torque 46 ft-lbf
Max Cutting 1200 ipm
Max Thrust X 2550 lbf
Max Thrust Y 2550 lbf
Max Thrust Z 4200 lbf
Max Tool Diameter 2"
Max Tool Length 7"
Chip-to-Chip (avg) 2.4 s
Tapping Speed 5000 rpm
Coolant Capacity 55 gal
Table Size: 26" x 15"
Dimensions: 80" x 100" x 98"
Weight: 5,500 LBS
