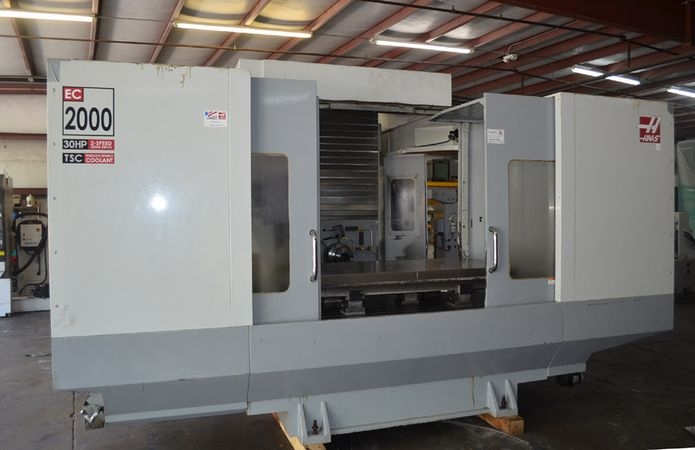

Used HAAS EC2000 Horizontal Machining Center
This 2006 HAAS EC2000 Horizontal Machining Center is a great choice for any shop looking for a larger machining application. This machine is in working condition and has a spindle time of 13,313 hours. It is located in Florida and is available for purchase now. The HAAS CNC Control is easy to use and provides a wide range of features. It has a programmable coolant system and a coolant thru spindle option. This machine is capable of machining a variety of materials, including aluminum, steel, and plastic. This machine is being sold because the shop is upgraded to a newer model. The price is very reasonable and the timeframe for purchase is immediate. No tooling is included with the machine, but it is compatible with a variety of tooling options
Y Axis Travel: 40"
Z Axis Travel: 32"
Rapid Rate X Axis: 540 IPM
Rapid Rate Y Axis: 540 IPM
Rapid Rate Z Axis: 540 IPM
Pallet Size: 84" x 36""
Max Pallet Load: 10000 LBS
Spindle Speed: 6,000 RPM
Spindle Motor: 30 HP
Spindle Taper: 50 CT
Tool Changer: 30 ATC
TOOL CHANGER:
Type SMTC
Capacity 30+1
Max Tool Diameter (full) 4.0 in
Max Tool Diameter (adjacent empty) 10.0 in
Tool-to-Tool (avg) 10.3 s
Chip-to-Chip (avg) 12.3 s
Dimensions: 172" x 142" x 119"
Weight: 35,500 LBS
Coolant Thru Spindle
Programmable Coolant
Chip Auger
Remote Jog
4th Axis Drive
Visual Quick Code
Work Offsets
Spindle Orientation
