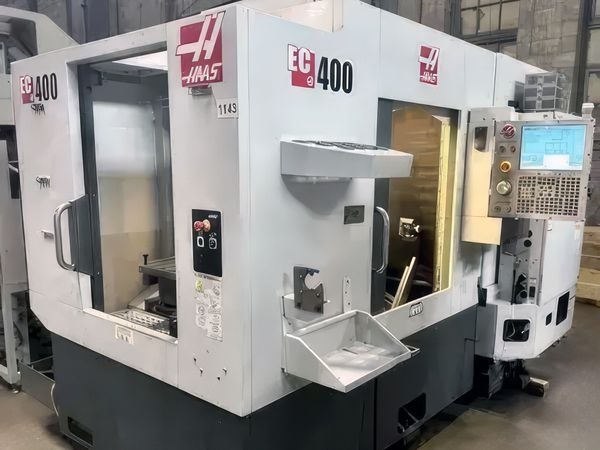

2011 HAAS EC400

This 2011 HAAS EC400 is a machine tool that features multiple benefits and specifications that simplify and augment manufacturing processes. It's equipped with a variety of additions such as a chip conveyor and programmable coolant.

Oriented to cater for different workpiece sizes, this machine boasts a pallet width and length of 400.05 mm each. The pallet indexing, geared toward .001 positioning only, provides quick and precise orientation. Fittingly, the machine holds two pallets with a maximum workpiece weight of 453.6 kg per pallet.

Another key feature is its wide range of motion. This model has an X-axis, Y-axis, and Z-axis, each with a travel distance of 508 mm. THESE dimensions give you ample space for your workpiece, a crucial factor for complex operations.

This machine's spindle is precise and versatile, with a speed of up to 8,000 RPM. Additionally, the 14.9 kW spindle motor ensures that it runs smoothly. The machine also comes with a CAT 40 spindle taper which makes tool changes quick and easy. Moreover, with 24 tool positions, known as ATC, it provides easy tool access and storage.

The HAAS EC400 is built for quick operations, with a rapid traverse rate of 2,540 cm/min. Meanwhile, the cutting feed rate comes in at 1,270 cm/min, increasing the production flow significantly. A load bearing capability of up to 22,000 LBS, means it can handle heavy workloads.

This machine provides full contouring on pallets, further expanding upon its functionality. It also has a through spindle coolant which removes excessive heat during operations. Additionally, it features a programmable coolant nozzle and flood coolant, ensuring controlled temperature during machining processes.

With a complete coolant system and Renishaw inspection tool, this machine is safety conscious and ready for instantaneous inspection and purchase. The HAAS EC400 is a robust asset for handling any large scale industrial tasks and enhancing productivity.
