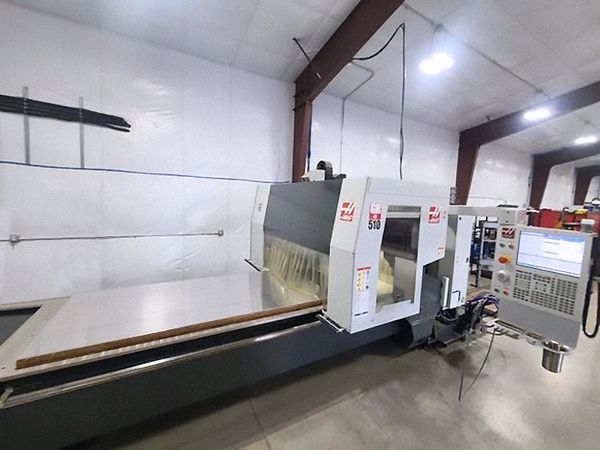

2022 HAAS GR510

ID:11725
Brand:HAAS
Model: GR510
Year:2022
Category:Router
Location:Kentucky

Located In Kentucky

SHIPPING COST :

HAAS GR510 AI Chat

Loading ...

Machine Overview

Specs:

X Axis Travel: 121"
Y Axis Travel: 61"
Z Axis Travel: 11"
Spindle Speed: 8,100RPM
Spindle Motor: 15HP
Spindle Nose to Table: 2.5" - 13.5"
Max Torque: 48.0 ft-lbf @ 1500 rpm
Drive System: Direct Speed, Belt Drive
Spindle Taper: CT40
Max Weight on Table (evenly distributed): 6000 LBS Distance Between Columns: 62"

Feedrates
Max Cutting: 800 IPM
Rapids on X: 800 IPM
Rapids on Y: 2100 IPM
Rapids on Z: 1100 IPM

Axis Motors
Max Thrust X: 2520 LBF
Max Thrust Y: 1020 LBF
Max Thrust Z: 2050 LBF

Tool Changer
Tool Capacity: 10
Max Tool Diameter (full): 3.5"
Max Tool Weight: 12 LBS
Dimensions: 206" x 111" x 108"
Weight: 19,400

Options:

Tooling Taper (BT/CT)
8.1K-40T-15HP
CHIP STRAINER
LOW-VOLT
1GB
ETHERNET
HAAS CONNECT
HAASDROP
HSM
MEDIA DISPLAY
RJH-TOUCH-XL
RTAP-3
TOUCH SCREEN
WIFI

Description:

Pre-owned HAAS GR510 2022 Router. This Router has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Kentucky. This HAAS Router is available for a limited time. Get a quote today on this GR510 before it's gone.
