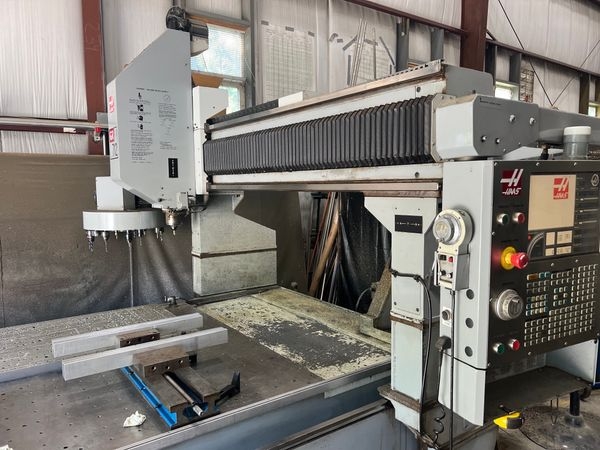

Pre-owned HAAS GR712 2007 Router. This Router has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Router is available for a limited time. Get a quote today on t...Read More
Notify Me:
Rigging:
Free
Specs:
X Axis Travel 145"
Y Axis Travel 85"
Z Axis Travel 11"
Spindle Nose to Table: 13.5"
Spindle Nose to Table: 2.5"
Max Rating 15 hp
Max Speed 8100 rpm
Max Torque 24 ft-lbf
Drive System Direct Speed
Taper CT40
Table Length 144"
Table Width 72"
Table Thickness 1"
Max Weight on Table 6000 lb
Max Torque: 24 ft-lbf
Between Columns: 86"
Max Cutting: 800 ipm
Max Thrust X 2520 lbf
Max Thrust Y 1020 lbf
Max Thrust Z 2050 lbf
Tools 10 ATC
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Dimensions 226" x 137" x 116"
Weight 24,600 lbs
Y Axis Travel 85"
Z Axis Travel 11"
Spindle Nose to Table: 13.5"
Spindle Nose to Table: 2.5"
Max Rating 15 hp
Max Speed 8100 rpm
Max Torque 24 ft-lbf
Drive System Direct Speed
Taper CT40
Table Length 144"
Table Width 72"
Table Thickness 1"
Max Weight on Table 6000 lb
Max Torque: 24 ft-lbf
Between Columns: 86"
Max Cutting: 800 ipm
Max Thrust X 2520 lbf
Max Thrust Y 1020 lbf
Max Thrust Z 2050 lbf
Tools 10 ATC
Max Tool Diameter 3.5"
Max Tool Weight 12 lb
Dimensions 226" x 137" x 116"
Weight 24,600 lbs
Options:
HAAS CNC Control
Probe
20 ATC
Upgraded Steel Table
24in Z Axis
Probe
20 ATC
Upgraded Steel Table
24in Z Axis
