Seller Needs:
$22,000|
1329
|
2

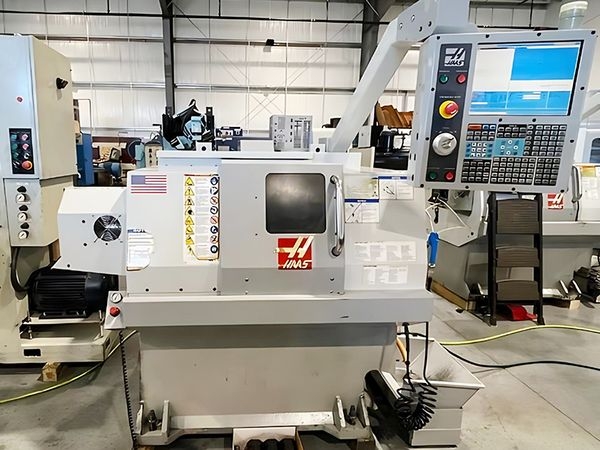

Pre-owned 2008 HAAS GT10 CNC Lathe. is currently under power and can be inspected running. This CNC Turning Center has below-average cutting time with only 3,181 spindle hours. This 2008 Haas GT10 Lathe is equipped with...Read More
Seller Needs:
Payment:
Specs:
Swing over bed: 16.25”
Swing over cross slide: 12.75”
Max cutting diameter: 10”
Max cutting length: 8”
X axis travel: 6”
Z axis travel: 8’’
Spindle speed: 3,000 RPM
Spindle nose: A2-5
Spindle bore: 1.38”
EQUIPPED WITH:
Haas CNC Control
(8) Position turret
5-C Collet Chuck
Coolant tank & pump
(4) Leveling pads
7.5 H.P. vector drive
Brushless Barfeeder interface
Control Options:
DNC, M19 Spindle Orientation
Quick Code,
Machine Hours:
Servo on time: 9869
Motion time: 2,523
Spindle time: 3,181
208-230V / 3 phase
240V / 1 phase
Machine Weight: 3,500 Lbs.
Machine Dims: 82” L x 85” W x 75’’ H
Options:
Haas CNC
8 Station Turret
Barfeed Interface
5C Collet Chuck
Coolant Tank Pump & Assembly
Misc. Tool Holders Included
8 Station Turret
Barfeed Interface
5C Collet Chuck
Coolant Tank Pump & Assembly
Misc. Tool Holders Included
Seller:
MattS394
Location:
FL
