Seller Needs:
$27,500|
1760
|
1

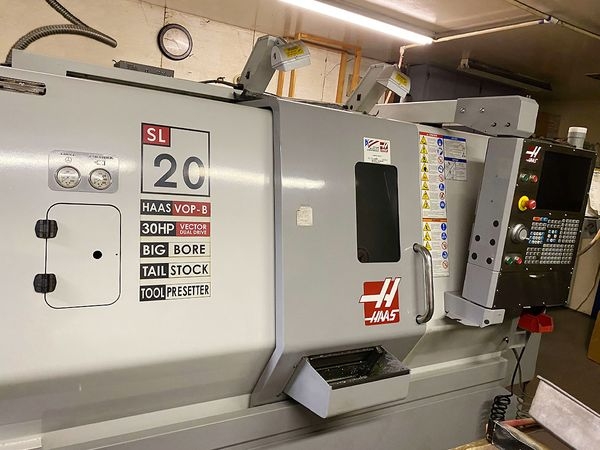

This 2010 HAAS SL20BB CNC Lathe is a digital machine tool that can cut, shape, and create many types of parts and components. The HAAS CNC Control lets you control the machine with easy programming and direct inputs. This mod...Read More
Seller Needs:
Payment:
Rigging:
$1,500
Specs:
Bar Capacity: 2.5"
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 8.4"
Z Axis Travel: 22.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13"
Max Turning Length: 23"
Max Swing: 21"
Dimensions: 143" x 90" x 92"
Weight: 8,820 LBS
Chuck Size: 10"
Spindle Speed: 3,500 RPM
Spindle Motor: 30 HP
X Axis Travel: 8.4"
Z Axis Travel: 22.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 10 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13"
Max Turning Length: 23"
Max Swing: 21"
Dimensions: 143" x 90" x 92"
Weight: 8,820 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Seller:
StacD901
Location:
USA
