Seller Needs:
$17,000|
2589
|
4

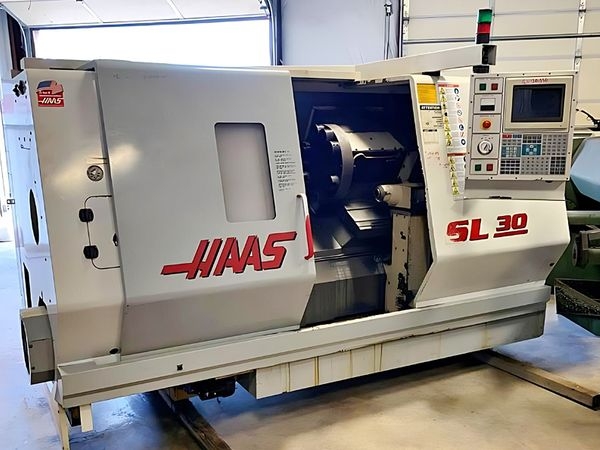

We are presenting to you a 1999 HAAS SL30T CNC Lathe. In terms of condition, this machine has been kept in good shape and continues to operate as smoothly. Though used, this CNC machine has been cared for, ensuring that it co...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:
HAAS CNC Control
Tailstock
Chip Auger
10" 3-Jaw Hydraulic Chuck
Tailstock
Chip Auger
10" 3-Jaw Hydraulic Chuck
Seller:
DannA179
Location:
OK
