Seller Needs:
$21,000|
665
|
3

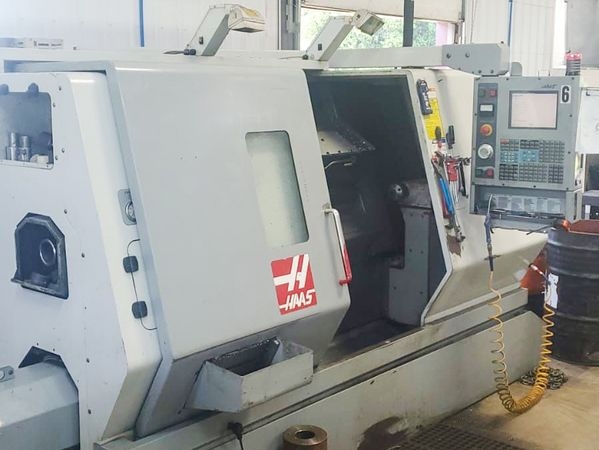

Pre-owned HAAS SL30T 2003 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote t...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.4"
Z Axis Travel: 32.5"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 32.5"
Max Swing: 20.5"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Rating: 30hp
Max Speed: 3400 rpm
Max Torque: 300 ft-lbf
Max Torque w/opt Gearbox
Spindle Bore: 3.5"
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
High Intensity Lighting
Tool Presetter
Tailstock
Parts Catcher
High Intensity Lighting
