Machine Overview

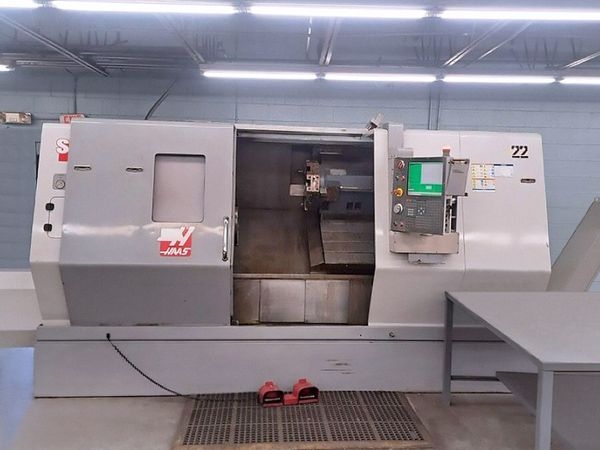

This 2012 HAAS SL40 is a versatile machine that comes equipped with a Chip Conveyor and Tailstock, providing additional functionality for various machining tasks.
Featuring a 15-inch chuck size, this lathe accommodates a maximum swing of 40 inches and a maximum swing over the cross slide of 25 inches. The machine enables a maximum cutting diameter of 25.5 inches and a maximum cutting length of 44 inches, making it suitable for handling sizable projects. With a maximum bar capacity of 4 inches, it effectively supports large pieces of material.
The HAAS SL40's X-axis travels up to 17 inches and its Z-axis extends up to 44 inches, ensuring substantial movement range for diverse operations. This model includes a spindle nose/bore specification of A2-8 / 4.62 inches, and its spindle can reach speeds of up to 2,400 RPM, driven by a robust 55 HP motor. The 10-station turret further adds to the machining flexibility. Rapid traverse rates of 710 inches per minute give it significant speed in changing positions.
With approximate dimensions of 170 x 102 x 89 inches and weighing about 25,000 pounds, the HAAS SL40 is a sizeable addition to any workshop, promising extensive capabilities. The machine is fitted with the HAAS CNC Control system, ensuring straightforward and accurate operation.
