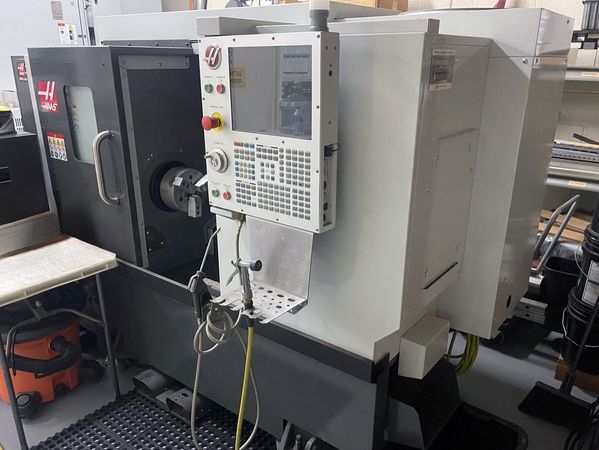

This 2018 HAAS ST15 CNC Lathe stands as a peak of precision and performance in machining. Located in the state of California, its aluminum structure has withstood only a meager 300 hours of use. Known for its robust reputatio...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Thrust X 3,300 lbf
Max Thrust Z 3,300 lbf
Spindle Nose A2-6
Max Rating 20 hp
Max Speed 4,000 rpm
Max Torque 150 ft-lbf
Spindle Bore 3.5"
Coolant Cap 30 gal
Dimensions: 135 x 62 x 85
Weight: 7,900 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 7.88"
Z Axis Travel: 14"
Rapid Rate Z Axis: 1,200 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 1,200 IPM
Max Turning Dia: 14"
Max Turning Length: 16"
Max Swing: 25.25"
Max Thrust X 3,300 lbf
Max Thrust Z 3,300 lbf
Spindle Nose A2-6
Max Rating 20 hp
Max Speed 4,000 rpm
Max Torque 150 ft-lbf
Spindle Bore 3.5"
Coolant Cap 30 gal
Dimensions: 135 x 62 x 85
Weight: 7,900 LBS
Options:
Tailstock
Seller:
MikeU266
Location:
CA
