HAAS ST20 CNC Lathe

user
Seller Needs:
$30,000
|
Views:
598
|
Watchers:
1

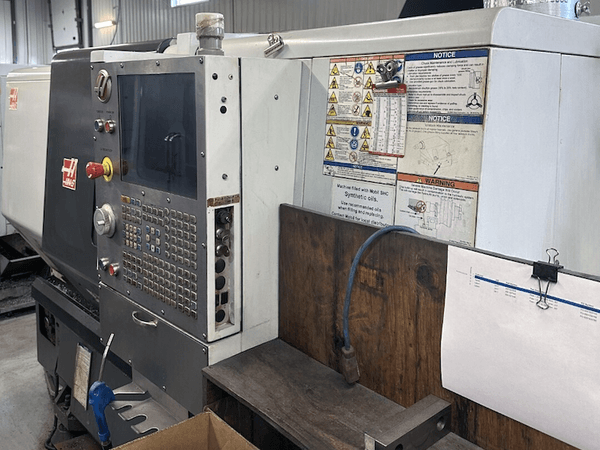

Pre-owned HAAS ST20 2011 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a Haas CNC Controller control. This CNC Machine is currently located in Indiana. This HAAS CNC Lathe is available for a limited ...Read More

Specs:
Bar Capacity: 2"
Chuck Size: 8"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 13"
Max Turning Length: 21"
Max Swing: 20.75"
Max Thrust X: 4100 lbf
Max Thrust Z: 5,100 lbf
Spindle Nose: A2-6
Coolant Capacity: 55 Gal
Dimensions: 143" x 90" x 92"
Weight: 9,000 LBS
Options:
Haas CNC Controller
Tool Presetter
Tailstock
BMT Style Turret
