Machine Overview
Max Turning Diameter: 11.75"
Max Turning Length: 21"
Max Swing: 21"
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000 RPM
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
Rapid Rate Z Axis: 945 IPM
Bar Capacity: 2.5"
Chuck Size: 8.3"
Turret Tools: 12 Station
EQUIPPED WITH:
Haas CNC Control
Sub Spindle
Live Tooling
Y-Axis, Full C-Axis
Programmable Tailstock
Automatic Tool Pre-Setter
Parts Catcher
Belt Type Chip Conveyor
Control Options Include:
Rigid Tapping
Spindle Orientation
Media M-Code
Ethernet / 1 GB Memory
2 AXIAL 2 RADIAL Live Tool Holders
3 Jaw Chuck Included
Chip Conveyor
Tool Presetter
Parts Catcher
Live Tooling
Sub Spindle
Y Axis

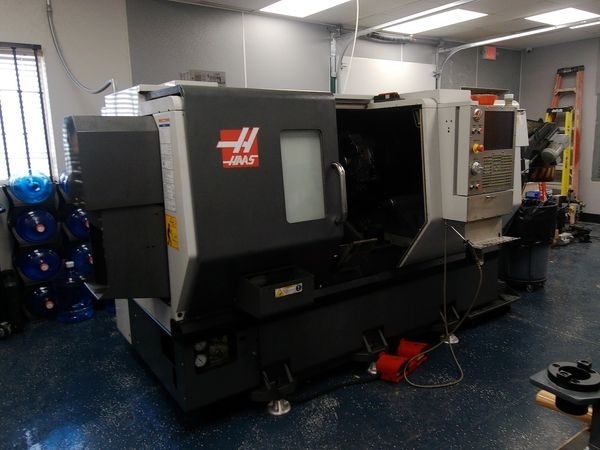

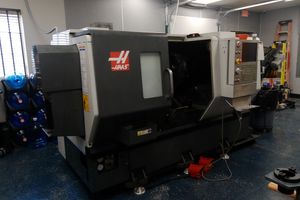

Pre-owned HAAS ST20Y 2014 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST20Y before it's gone.
