Seller Needs:
$80,500|
993
|
2

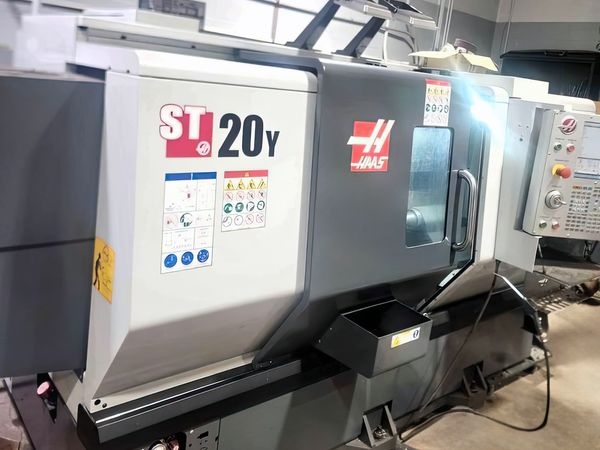

Pre-owned HAAS ST20Y 2018 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in Ohio. This HAAS CNC Lathe is available for a limited time. Get a quote ...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Weight: 10,500 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Weight: 10,500 LBS
Options:
Tool Presetter
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Haas Bar Feeder
Chip Auger
High Intensity Lighting
Royal A2-6 spindle with a few collet
Tailstock
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Haas Bar Feeder
Chip Auger
High Intensity Lighting
Royal A2-6 spindle with a few collet
Seller:
RonD746
Location:
OH
