Seller Needs:
$110,500|
23
|
0

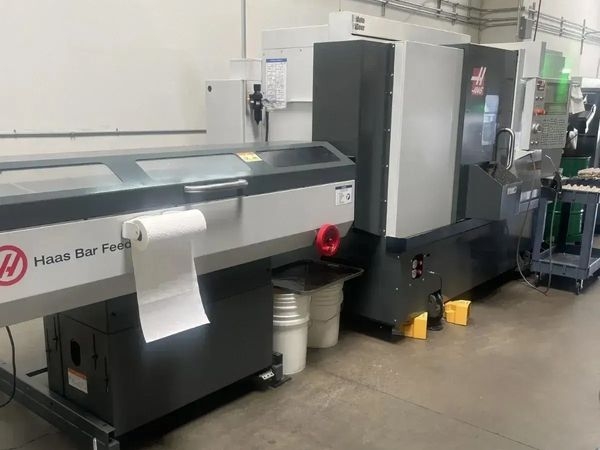

This 2020 HAAS ST20Y is a noteworthy addition to any machine shop looking to enhance its capabilities. With its compact design, it offers the flexibility and precision needed for a variety of turning applications. This machin...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 11.75"
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,480 LBS
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 11.75"
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,480 LBS
Options:
HAAS CNC Control
Tailstock
Bar Feeder
Y Axis
Tailstock
Bar Feeder
Y Axis
Seller:
MarkP815
Location:
USA
