Machine Overview

Specs:
Bar Capacity: 2.5"
Chuck Size: 8.3"
Spindle Speed: 4,000 RPM
Spindle Motor: 20 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Y Axis Travel: -/+ 2"
Live Tooling: 4,000RPM
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 11.75"
Max Turning Length: 21"
Max Swing: 21"
Rapids on X: 472 ipm
Rapids on Y: 472 ipm
Rapids on Z: 945 ipm
Coolant Capacity: 55 gal
Dimensions: 143" x 90" x 87"
Weight: 10,480 LBS
Options:
Chip Conveyor
Bar Feeder
Parts Catcher
Live Tooling
Y Axis
Haas CNC Control
Collet Chuck
Description:

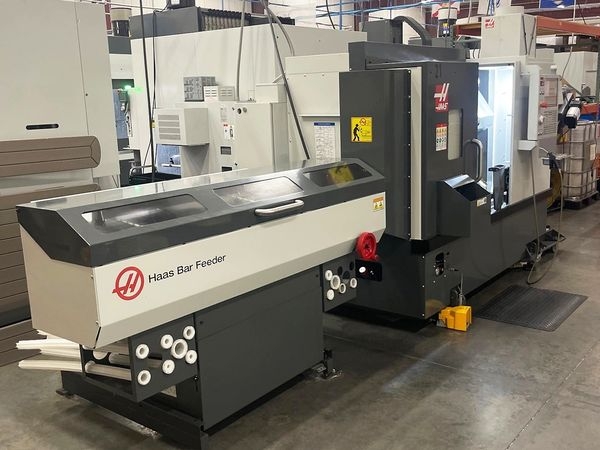

This 2021 HAAS ST20Y CNC Lathe offers robust performance tailored for varied machining needs. Included in this machine are several key options and upgrades to enhance your machining capabilities. The chip conveyor efficiently removes swarf, keeping workspaces tidy and productive.

With the bar feeder, work is streamlined, enabling longer runs without constant manual input. The parts catcher ensures finished pieces are collected safely and automatically, reducing downtime between jobs.

Live tooling expands the machine's capability, allowing operations such as milling and drilling without the need for secondary machinery. The Y-axis adds another dimension of movement, offering more complex machining tasks with ease.

The Haas CNC Control provides an intuitive interface for operators, simplifying programming and operation tasks. It helps experienced and novice users navigate machine jobs efficiently.

To hold workpieces securely, this lathe comes equipped with a collet chuck, offering precision gripping and minimizing the risk of slippage during operation. These features combined make this lathe a valuable addition to any machining environment.
