Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 9.3"
Z Axis Travel: 21"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 15"
Max Turning Length: 21"
Max Swing: 31.75"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-6
Max Torque: 300 ft-lbf
Spindle Bore: 3.5"
Coolant Capacity: 55 gal
Drive System: Belt Drive
Dimensions: 143" x 90" x 92"
Weight: 10,000 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Description:

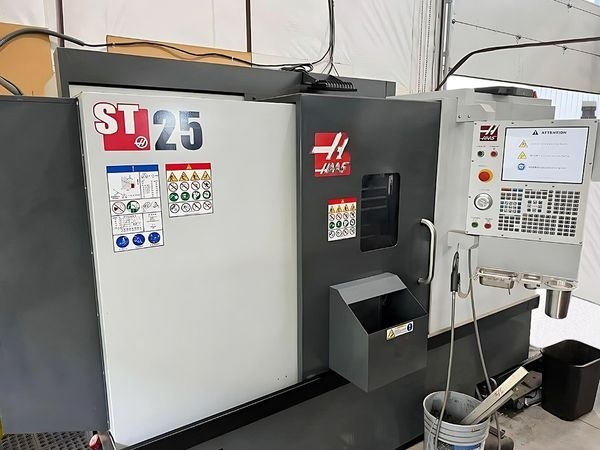

This 2022 HAAS ST25 CNC Lathe is a must-see item for anyone with an interest in high-quality machinery. The CNC lathe forms an integral part of the manufacturing process and should appeal to those who want a device that gets the job done. It has the ability to create precise parts and tools from various materials. The machine comes with a sophisticated Haas Next Gen CNC Control, allowing for easy operations and control.

The HAAS CNC Lathe includes a range of options and upgrades to make your work easier. Among these, you'll find a chip conveyor. This upgrade aids in disposing of the waste materials from the work process, preventing any disruption to your operations. It offers a tool presetter as well. The tool presetter reduces setup times by enabling an easy way for you to set tool offsets.

A unique feature of this 2022 Haas ST25 CNC Lathe is its tailstock. The tailstock gives extra support to the materials being worked on, adding an extra layer of control and precision. Adding to this, it also comes equipped with a parts catcher. The parts catcher ensures that all finished products are efficiently collected, keeping your workspace neat and reducing the risk of any damage to the finished parts.

Overall, the HAAS ST25 CNC Lathe stands as an accomplished example of a 2022 model. If you are seeking a machine that can assist in creating top-quality products while minimizing the amount of work you put in, then this is the tool for you. The upgrades that come with the lathe also enhance its productivity and its appeal to those in the manufacturing sector.
