Seller Needs:
$44,000|
32
|
0

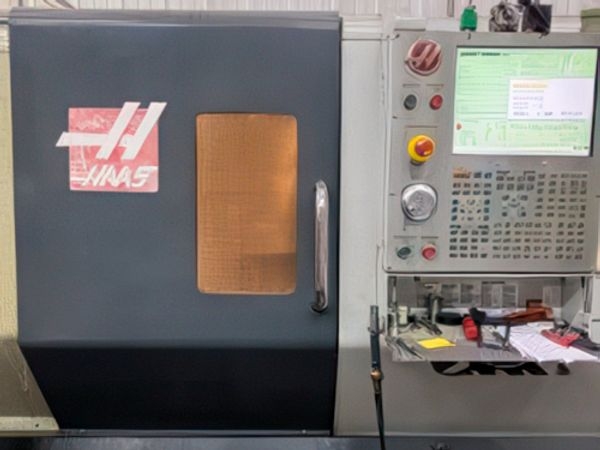

Pre-owned HAAS ST30 2012 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Minnesota. This HAAS CNC Lathe is available for a limited t...Read More
Seller Needs:
Payment:
Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-8
Max Torque: 300 ft-lbf
Spindle Bore: 3.5"
Coolant Cap: 55 gal
Dimensions: 171" x 90" x 98"
Weight: 14,000 LBS
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 12 Station
Rapid Rate X Axis: 945 IPM
Max Turning Dia: 21"
Max Turning Length: 26"
Max Swing: 31"
Max Thrust X: 4100 lbf
Max Thrust Z: 5100 lbf
Spindle Nose: A2-8
Max Torque: 300 ft-lbf
Spindle Bore: 3.5"
Coolant Cap: 55 gal
Dimensions: 171" x 90" x 98"
Weight: 14,000 LBS
Options:
HAAS CNC Control
Chip Conveyor
Tool Presetter
Tailstock
Chip Conveyor
Tool Presetter
Tailstock
