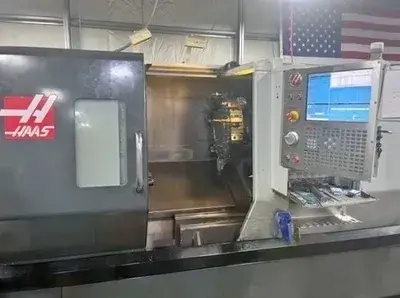

This 2013 HAAS ST30SS is an outstanding choice for those in the market for a used lathe with versatile capabilities. This machine comes ready with options like a Chip Conveyor, Tailstock, and Live Tooling, ideal for various m...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
SWING OVER BED: 806.45 mm
MAX CUTTING DIAMETER: 406.4 mm
MAX CUTTING LENGTH: 660.4 mm
CHUCK SIZE: 254 mm
BAR CAPACITY: 76.2 mm
SPINDLE NOSE: A2-6
SPINDLE MOTOR: 22.4 kW
SPINDLE SPEED: 4,500 RPM
TURRET CAPACITY: 24
TURRET TYPE: HYBRID BOT/VDI
LIVE MILLING: Yes
HIGH-TORQUE LIVE TOOLING, FULL C-AXIS
10", 3-JAW HYDRAULIC CHUCK
3" BAR CAPACITY
PROGRAMMABLE TAILSTOCK
TOOL PRESTTER
CHIP CONVEYOR
24-POSITION HYBRID TURRET (12 VDI/12 BOLT-ON)
HIGH-INTENSITY LIGHTING
SPINDLE ORIENTATION
RIGID TAPPING
USB PORT** AS OF MAY 2025, FEED CUTTING TIME 5,985 HOURS** FULL REPLACEMENT COST, AS EQUIPPED - $135,000
** MACHINE CUT PRIMARILY ALUMINUM & SOME ALLOY STEEL, STAINLESS STEEL & PLASTIC
** AVAILABLE FOR IMMEDAITE INSPECTION & PURCHASE
MAX CUTTING DIAMETER: 406.4 mm
MAX CUTTING LENGTH: 660.4 mm
CHUCK SIZE: 254 mm
BAR CAPACITY: 76.2 mm
SPINDLE NOSE: A2-6
SPINDLE MOTOR: 22.4 kW
SPINDLE SPEED: 4,500 RPM
TURRET CAPACITY: 24
TURRET TYPE: HYBRID BOT/VDI
LIVE MILLING: Yes
HIGH-TORQUE LIVE TOOLING, FULL C-AXIS
10", 3-JAW HYDRAULIC CHUCK
3" BAR CAPACITY
PROGRAMMABLE TAILSTOCK
TOOL PRESTTER
CHIP CONVEYOR
24-POSITION HYBRID TURRET (12 VDI/12 BOLT-ON)
HIGH-INTENSITY LIGHTING
SPINDLE ORIENTATION
RIGID TAPPING
USB PORT** AS OF MAY 2025, FEED CUTTING TIME 5,985 HOURS** FULL REPLACEMENT COST, AS EQUIPPED - $135,000
** MACHINE CUT PRIMARILY ALUMINUM & SOME ALLOY STEEL, STAINLESS STEEL & PLASTIC
** AVAILABLE FOR IMMEDAITE INSPECTION & PURCHASE
Options:
Chip Conveyor
Tailstock
Live Tooling
Tailstock
Live Tooling
