Machine Overview

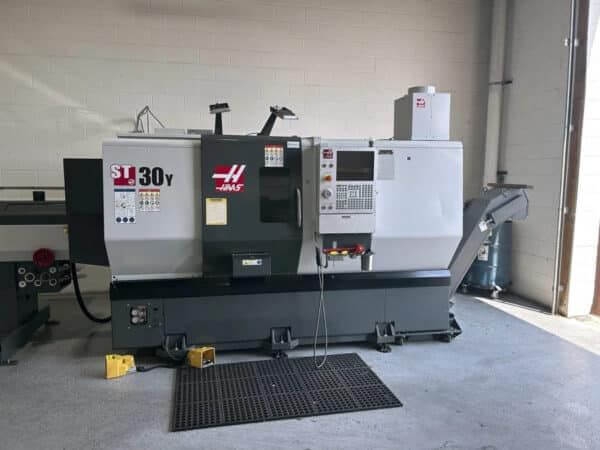

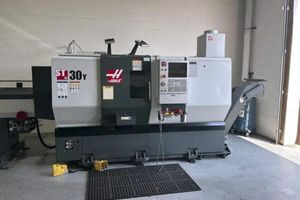

This 2020 HAAS ST30Y is a remarkable turning center designed for precise and versatile machining tasks. Built with a range of features to enhance its functionality, this machine offers detailed specifications that cater to various manufacturing needs.
Key specifications include a chuck size of 10 inches, allowing for secure workpiece holding and manipulation. It accommodates a maximum cutting diameter of 13.75 inches and a maximum cutting length of 32.5 inches, providing ample space for a variety of projects. With a maximum bar capacity of 3.00 inches, it can handle substantial stock sizes, while the maximum part swing is 21.0 inches.
Travel capacities are integral to its operation: the X-axis allows for 9.40 inches of movement, and the Y-axis offers a combined travel range of 2.00 inches, totaling 4.00 inches, while the Z-axis enables 32.50 inches of travel. Designed to move swiftly, the X and Y axes feature rapid traverse rates of 472 IPM, and the Z-axis boasts a rapid traverse rate of 945 IPM.
This machine's main spindle can reach speeds of up to 3,400 RPM, powered by a 30 HP motor. It delivers maximum spindle torque of 300 ft-lb at 500 RPM with a spindle nose of A2-6. The spindle bore measures 3.50 inches, ensuring robust processing capabilities. Furthermore, it features a full interpolated C-axis with precise positioning at 0.01, enhancing its operational versatility.
The turret is equipped as a 12-station BMT65, enabling efficient tool management and changeover. Live tooling speed reaches 4,000 RPM, making it suitable for diverse applications. A sizable coolant capacity of 55 gallons ensures smooth operation over extended periods without disruption.
This machine weighs approximately 11,340 pounds, which provides stability and reduces vibration during operation, ensuring that it can accommodate a variety of heavy-duty machining tasks. With these features, the 2020 HAAS ST30Y offers a combination of speed, precision, and robustness suitable for a wide range of machining applications.
