Home / CNC Lathe / HAAS / ST30Y / 13421
Posted By ClinR847
BUY NOW
us-flag
Located In California
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 3"
Chuck Size: 10"
Spindle Speed: 3,400 RPM
Spindle Motor: 30 HP
X Axis Travel: 12.5"
Z Axis Travel: 26"
Rapid Rate Z Axis: 945 IPM
Turret Tools: 24 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 18"
Max Turning Length: 23"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Spindle Nose A2-6
Max Rating 30 hp
Max Speed 3400 rpm
Max Torque 300 ft-lbf
Max Torque 1000 ft-lbf

LIVE TOOLING:
Max Rating 5 hp
Positioning (±) 0.01 °
Brake Force 1,000 lbf
Brake Diameter 14.4"
Number of Tools 24 Stations Live
Max Speed 4000 rpm
Tooling BMT65
Weight: 14,300 LBS
Options:
Haas Next Gen CNC Control
Chip Conveyor
Tool Presetter
Bar Feeder
Parts Catcher
Live Tooling
Sub Spindle
Y Axis
5 Axis
10" Hydraulic Chuck, A2-6
6.5" Sub-Spindle Chuck, A2-5
24 Station BMT65 Live Turret w/ C-Axis
Haas Bar Feeder V2 (3.00")
Wireless Intuitive Probing System
High-pressure Coolant
Chuck Air Blast
Sub Spindle Air Blast
Rigid Tapping
Wi-Fi Camera
BMT65 Driven Toolholder Kit
BMT65 Standard Toolholder Kit
32 GB Expanded Memory
Large Remote Jog Handle w/ Touchscreen
Internal High-voltage Isolated Transformer
Coming with assortment of collets, tools and live tool holders
New Replacement $228,260!
Description:

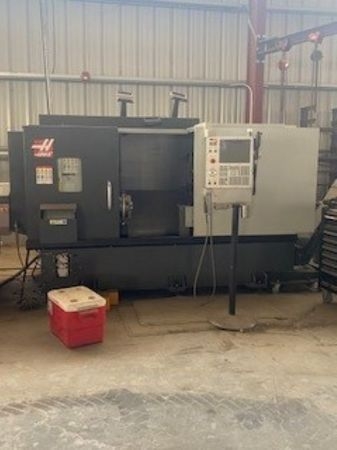

Pre-owned HAAS ST30Y 2024 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in California. This HAAS CNC Lathe is available for a limited time. Get a quote today on this ST30Y before it's gone.
