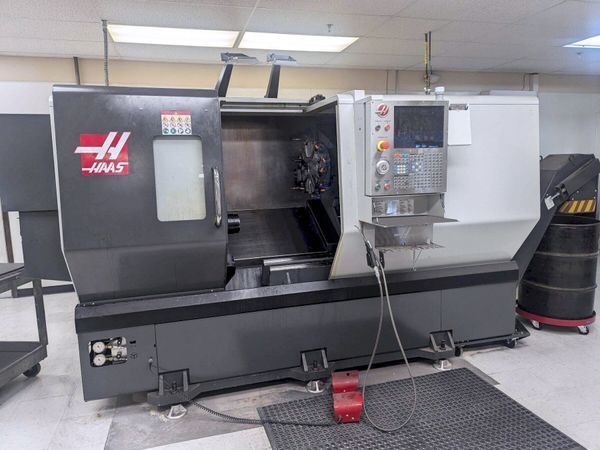

2016 HAAS ST35

This 2016 HAAS ST35 is available with several options, including a Tailstock, Live Tooling, Sub Spindle, and Y Axis. These features provide versatility for a variety of machining needs. The machine is built with Haas CNC control, maintaining precision and user-friendly operation.

The control type for this model is Haas, which is a widely recognized standard in the industry. It operates on a 2-axis setup, which offers reliable performance for standard turning operations. The machine can handle a swing of 21 inches and a turning diameter of up to 15 inches, with a center distance of 32.5 inches. It is equipped with a 12-inch chuck size and a bar capacity of 4 inches.

The X-Axis Travel of 9.4 inches and Z-Axis Travel of 32.5 inches ensure ample space for various projects. Rapid Traverse for X and Z axes is 945 ipm, contributing to quick movement and efficient operation. The Spindle Nose is an A2-8, with a spindle speed reaching up to 3,200 rpm, driven by a 40 hp main motor.

The machine has a turret capacity of 12, allowing for multiple tools to be set up for complex jobs. The presence of a tailstock supports longer workpieces during operation. While it does not have live tooling or a Y axis, the model is still fit for many standard tasks. The sub spindle is also not included on this particular machine.

The overall dimensions of the machine are 170 inches by 90 inches by 92 inches, and it weighs 14,300 pounds. This size makes it suitable for spacious workshops and tailored installations. The HAAS ST35 is right for users looking for a dependable machine with an established reputation in the machining world.
