Home / CNC Lathe / HAAS / ST35Y / 12958
Posted By MikeF245
BUY NOW
us-flag
Located In Pennsylvania
SHIPPING COST :
Hello!

Machine Overview

Specs:
Bar Capacity: 4"

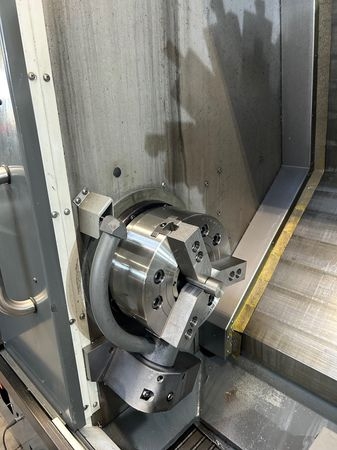

Chuck Size: 12"
Spindle Speed: 3,200 RPM
Spindle Motor: 40 HP
X Axis Travel: 12.5"
Z Axis Travel: 23"
Y Axis Travel: +2, -2"
Live Tooling: 6,000 RPM
Rapid Rate Z Axis: 945 IPM

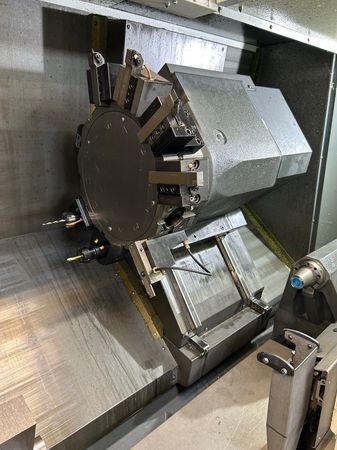

Turret Tools: 12 Station
Rapid Rate X Axis: 472 IPM
Max Turning Dia: 13.75"
Max Turning Length: 23"
Max Swing: 31.75"
Max Thrust X 4100 lbf
Max Thrust Y 2300 lbf
Max Thrust Z 5100 lbf
Max Torque 425.0 ft-lbf
Spindle Nose A2-8
Dimensions: 171" x 90" x 98"
Weight: 14,300 LBS
Options:

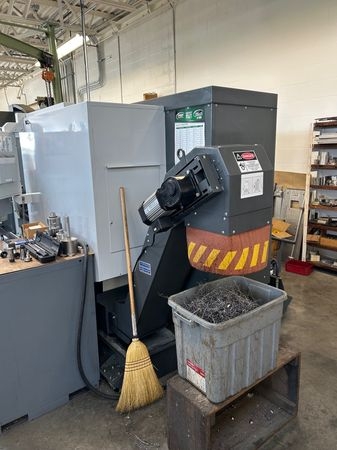

Chip Conveyor
Tool Presetter
Tailstock
Parts Catcher
Live Tooling
Y Axis
Alignment Report Available March 2025
6,000 RPM Upgrade For Live Tooling
High Pressure Coolant 300 PSI
Coolant Sanitizer
Coolant Tank Oil Skimmer
Description:

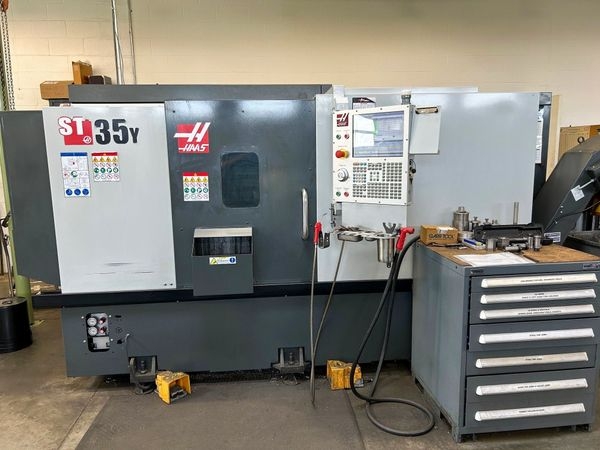

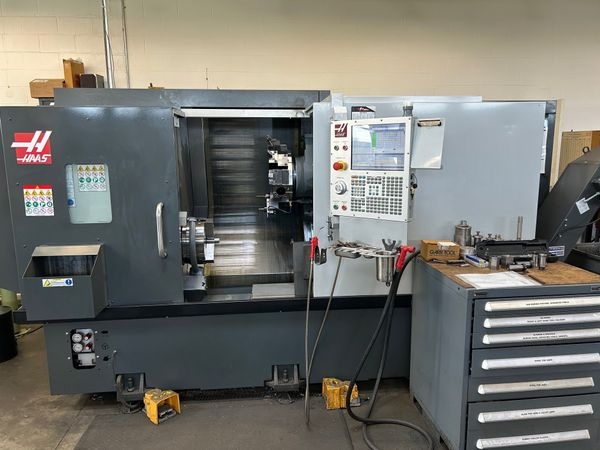

This 2021 HAAS ST35Y CNC Lathe is a robust solution designed to meet your machining needs. It offers a versatile range of features suitable for complex tasks. This machine comes equipped with a Chip Conveyor, Tool Presetter, Tailstock, and Parts Catcher. With Live Tooling and a Y Axis, it allows for more advanced operations and increased productivity.

A notable upgrade to this machine is the new spindle installed in April 2025. This enhancement ensures smooth and accurate performance. The alignment report is available for review, showcasing its maintained condition.

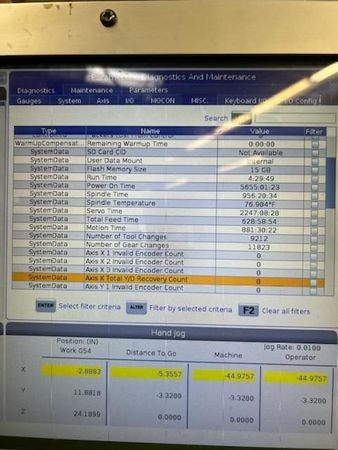

The machine has been gently used, with very low hours noted in the attached documentation. The lathe's robust construction and comprehensive features make it a standout choice. It provides a reliable solution for diverse machining projects.
