Machine Overview
Chuck Size: 8"
Spindle Speed: 2,000 RPM
Spindle Motor: 12 HP
X Axis Travel: 8"
Z Axis Travel: 30"
Rapid Rate Z Axis: 450 IPM
Rapid Rate X Axis: 450 IPM
Max Turning Dia: 16"
Max Turning Length: 30"
Max Swing: 16"
Spindle Bore 2.3"
Spindle Nose A2-5
Dimensions: 84" x 57" x 79"
Weight: 4,300 LBS
Tailstock
Under 100 hours
4 Position Automatic Turret
8 Inch Samchully Chuck,
5 Inch Steady Rest
ROYAL COLLET CHUCK AND COLLET CLOSER
Runs on single or 3 phase.
Has coolant tank and pump

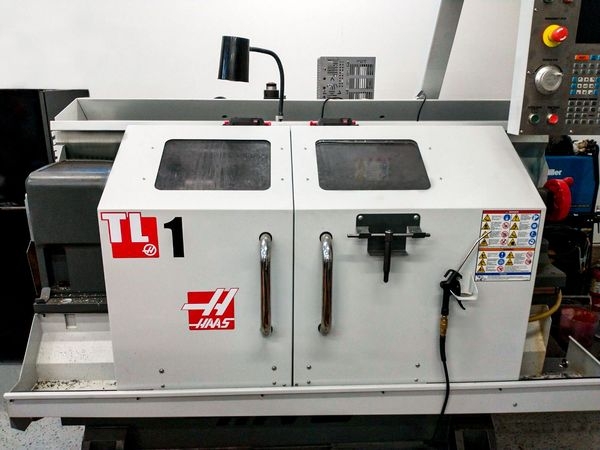

Pre-owned HAAS TL1 2013 CNC Lathe. This CNC Lathe has average cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS CNC Lathe is available for a limited time. Get a quote today on this TL1 before it's gone.
