Machine Overview

Specs:
PLATTER DIAMETER: 635 mm
X-AXIS TRAVEL: 1,016 mm
Y-AXIS TRAVEL: 635 mm
Z-AXIS TRAVEL: 635 mm
B-AXIS (TILT) TRAVEL: +120 DEGREES/-35 DEGREES
C-AXIS (ROTATION) TRAVEL: 360 DEGREES
SPINDLE SPEED: 8,100 RPM
SPINDLE MOTOR: 22.4 kW
SPINDLE TAPER: CAT 40
TOOL CAPACITY (ATC): 50

HAAS NEXTGEN CONTROL
RENISHAW WIRELESS INTUITIVE PROBING SYSTEM (WIPS)
THROUGH-SPINDLE COOLANT (300 PSI)
SIDE-MOUNT TOOL CHANGER (50 ATC)
AUXILARY COOLANT FILTRATION SYSTEM
PROGRAMMABLE COOLANT
REMOTE JOG HANDLE
CHIP CONVEYOR
CHIP TRAY FILTER KIT
ROTARY SCALES (B & C AXES)
EARLY POWER-FAILURE DETECTION MODULE
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
MEDIA DISPLAY M-CODE (M130)
SECOND HOME POSITION
SPINDLE ORIENTATION
RIGID TAPPING
MACROS
USB PORT
ETHERNET
1GB MEMORY
WIFI CONNECTIVITY
HAASCONNECT: REMOTE MONITORING** MACHINE CUT PRIMARILY ALUMINUM & STEEL
** FULL REPLACEMENT COST, AS EQUIPPED - $280,000

WORKHOLDING & TOOL HOLDERS SHOWN ARE NOT INCLUDED WITH MACHINE
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
THROUGH-SPINDLE COOLANT (300 PSI)
AUXILARY COOLANT FILTRATION SYSTEM
SIDE-MOUNT TOOL CHANGER (50 ATC)
ROTARY SCALES (B & C AXES)
DYNAMIC WORK OFFSETS & TOOL CENTER POINT CONTROL
COORDINATE ROTATION & SCALING
SPINDLE ORIENTATION
RIGID TAPPING
REMOTE JOG HANDLE
Description:

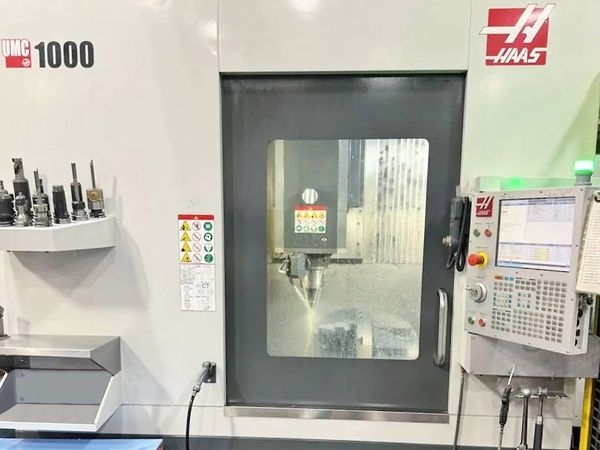

This 2019 HAAS UMC1000 is ready to elevate your machining capabilities. It comes equipped with key options such as a Chip Conveyor and Programmable Coolant, ensuring smooth operation and optimized performance.

The UMC1000 boasts impressive specifications. Its Platter Diameter stands at 635 mm, with X-Axis Travel of 1,016 mm, Y-Axis Travel of 635 mm, and Z-Axis Travel also at 635 mm. The B-Axis features a tilt range of +120 degrees to -35 degrees, while the C-Axis offers full 360-degree rotation. The machine’s Spindle Speed reaches up to 8,100 RPM, powered by a 22.4 kW Spindle Motor, with a CAT 40 Spindle Taper. Additionally, it is equipped with a Tool Capacity of 50 slots.

This machine is powered by the HAAS NextGen Control, which simplifies operations and enhances productivity. The Renishaw Wireless Intuitive Probing System (WIPS) ensures precise measurements, and the Through-Spindle Coolant (300 PSI) provides effective cooling during operations. A Side-Mount Tool Changer allows for quick tool swaps, complemented by an Auxiliary Coolant Filtration System and a Chip Tray Filter Kit to keep the workspace tidy.

The UMC1000 includes Rotary Scales on B and C Axes, Early Power-Failure Detection Module, and robust management features like Dynamic Work Offsets & Tool Center Point Control. The Coordinate Rotation & Scaling capability, combined with Media Display M-Code (M130), enables flexible and detailed work management. Additional features like a Second Home Position, Spindle Orientation, and Rigid Tapping add to the machine's versatility.

Connectivity options are abundant with USB Port, Ethernet, 1GB Memory, and WiFi Connectivity, allowing seamless integration into your existing systems. HAASConnect offers remote monitoring for on-the-go management of your operations. The machine has primarily been used to cut aluminum and steel, providing robust and consistent performance.

This UMC1000, with a full replacement cost of $280,000, offers outstanding value for its price. The machine is set up in plant, under power, and immediately available for inspection and purchase. Do note that workholding and tool holders displayed in the images are not included with this unit.
