Machine Overview
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 900 IPM
Rapid Rate Y Axis: 900 IPM
Rapid Rate Z Axis: 900 IPM
Table Size:
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,100 RPM
Spindle Taper: 40
Tool Changer: 30+1 ATC
Spindle Nose to Platter 4"-20"
B Axis Tilt 120 to -35 deg.
B Axis Rot. Spd. 50 deg. per second
B Axis Torque 1854 ft lb
Max Part Swing 18 in.
Brake Torque 900 ft lb
Max X & Y Axis Thrust 3300 ft lb
Max Z Axis Thrust 4050 ft lb
Max Tool Length 12 in
Max Tool Weight 12 lb
Tool to Tool 2.8 seconds
Chip to Chip 3.6 seconds
Dimensions:
Weight: LBS
5 Axis

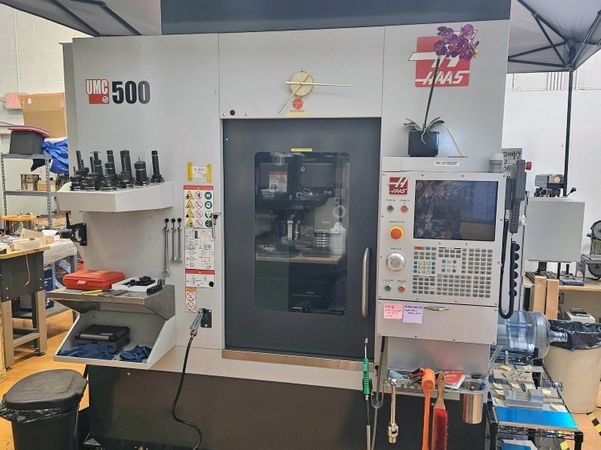

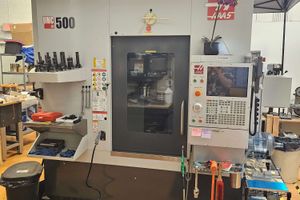

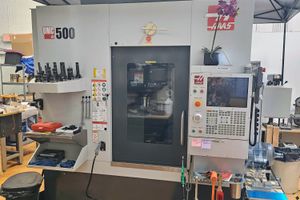

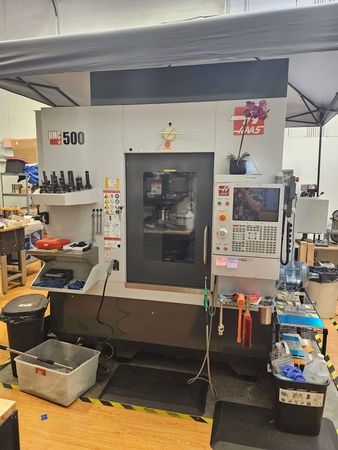

Pre-owned HAAS UMC500 2023 Vertical Machining Center. This Vertical Machining Center has 0-500 cutting time and is equipped with a CNC control. This CNC Machine is currently located in USA. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this UMC500 before it's gone.
