Machine Overview

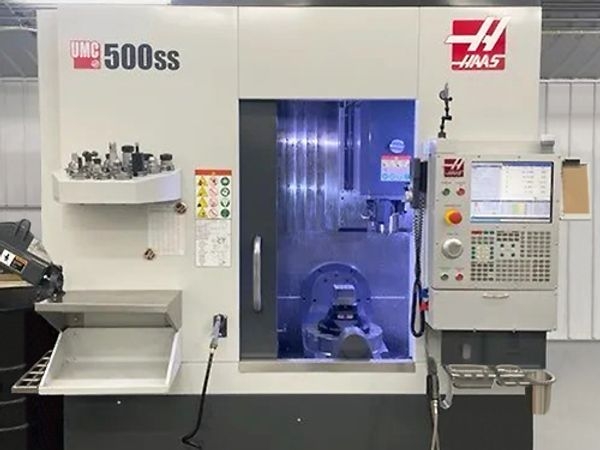

This 2020 HAAS UMC500SS is a powerful tool for your machining needs, designed to deliver precision and versatility. This used machine is a reliable choice, equipped with several advantageous features essential for efficient operations.
The machine comes with a Chip Conveyor and Programmable Coolant, maximizing its functionality. It is identified with Stock Number: 119973, offering a compact Table Size of 15.7" diameter with a Table Load Capacity of up to 500 lbs. It offers a substantial X axis travel of 24", along with Y and Z axis travel of 16" each, ensuring a variety of machining tasks can be easily accommodated. The B axis on the trunnion rotates from -35 degrees to 120 degrees, and the C axis table rotation has a precise positioning capability of .001 Degree.
This 5-axis machine is supported by a robust Spindle with a CAT #40 taper, operating at speeds up to 12,000 RPM, driven by a 30 HP motor. The distance from the Spindle Nose to the Table Top ranges from 4" to 20", allowing for diverse part sizes. It features a Tool Magazine with a capacity of 50 ATC, supporting tools up to 5" in diameter, 12" in length, and weighing 12 lbs.
The HAAS UMC500SS is designed for speed with rapid traverse rates of 900 IPM. It maintains a manageable Machine Dimension of 120" x 92" x 101" and a weight of 11,900 lbs, fitting within most machining environments.
Additional features include a Trunnion Style 5th Axis Table for extended flexibility, Coolant Through the Spindle, a Programmable Coolant Nozzle, and an Auxiliary Coolant Filter for effective operation. Enhanced with a 500 Station Tool Changer and a Remote Jog Handle, it also offers User Definable Macros for customization and efficient function. The Coordinate Rotation & Scaling and Spindle Orientation ensures precise parts production.
Rigid Tapping and Enclosure Exhaust System provide advanced practical applications, alongside High-Speed Machining and VPS Editing for demanding tasks. Equipped with a Media Display and Ethernet and USB Port Interfaces, it allows seamless data handling and connectivity. The RS 232 Port Interface and Coolant System with Tank & Pump are designed for ongoing use, as evidenced by just 1,000 Run Time Hours.
