Machine Overview

Specs:
X Axis Travel: 24"
Y Axis Travel: 16"
Z Axis Travel: 16"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Table Size: 15.7" x 15.7"
Dimensions: 128" x 101" x 120"
Weight: 11,900 LBS
Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
5 Axis
50 Station Tool Changer
Chip Strainer
Mist Away Mist Extractor
Description:

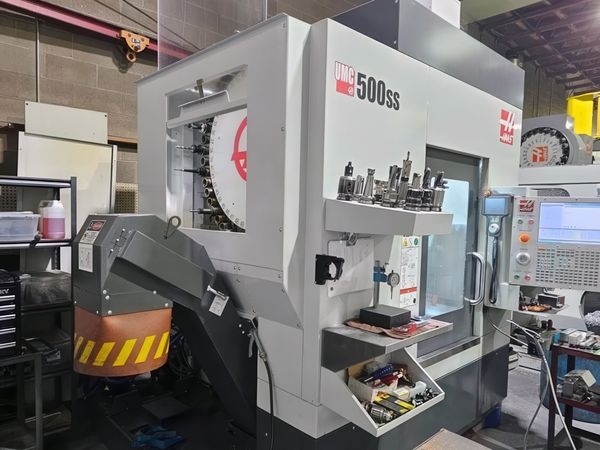

This 2021 HAAS UMC500SS is a great choice for those in need of a dependable and capable machining center. It comes with the Chip Conveyor and Programmable Coolant options, providing valuable features for managing chips and coolant application during operations.

With impressive specifications, this machine delivers versatility and precision. It offers an X-Axis Travel of 24 inches, a Y-Axis Travel of 16 inches, and a Z-Axis Travel of 16 inches. The table measures 15.7 inches in size, with a max load capacity of 500 pounds.

The Spindle Motor has 30 Horsepower and reaches speeds up to 12,000 RPM with a BT-40 Spindle Taper. The 50 + 1 Automatic Tool Changer enables quick tool swaps to facilitate smooth operations. It operates on 220 volts, 3-phase power, drawing 70 amps.

Additionally, this machine is equipped with 300 PSI Thru Spindle Coolant and a Belt Chip Conveyor. It includes a Programmable Coolant Nozzle and Chip Strainer, along with a Mist Away Mist Extractor for efficient chip and coolant management.

This HAAS UMC500SS is ready to meet diverse machining needs with robust specifications and features designed to support various manufacturing tasks.
