HAAS UMC750 AI Chat
Loading ...

Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Spindle Nose to Platter 24"
Spindle Nose to Platter 4"
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf

B AXIS TILT
Travel 120 ° to 35- °
Max Speed 50 ° sec
Max Torque 2240 ft-lbf
Brake Torque 2000 ft-lbf

C AXIS ROTATION
Travel 360 °
Max Speed 50 ° sec
Max Torque 1854 ft-lbf
Max Part Swing 27"
Brake Torque 900 ft-lbf

TOOL CHANGER
Capacity 30+1
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 12"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip ) 3.6 s
Dimensions: 162" x 113" x 116"
Weight: 14,500 LBS
Options:
HAAS CNC Control
Probe
Chip Conveyor
5 Axis
Haas CNC Control
Description:

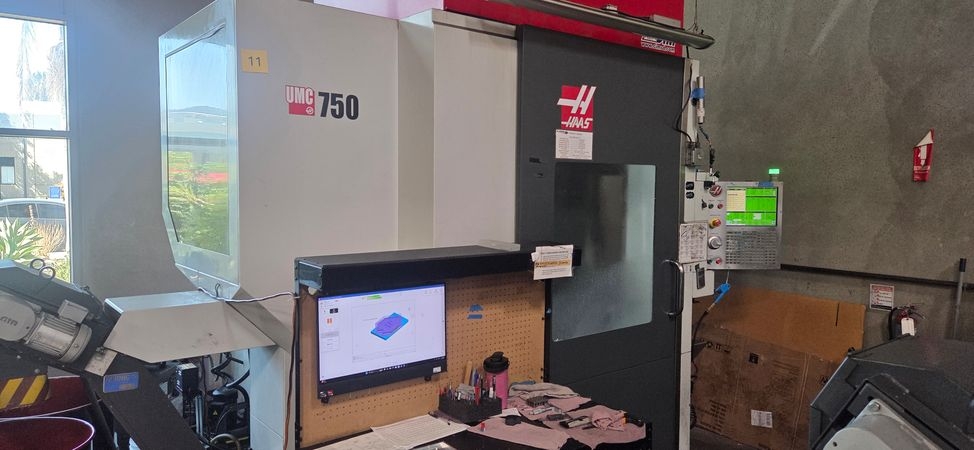

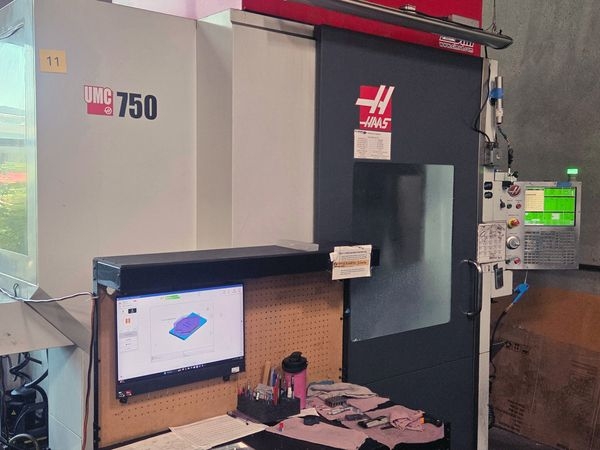

This 2014 HAAS UMC750 Vertical Machining Center is a versatile tool designed to enhance your manufacturing process. Known for its flexibility, this machine is suitable for a variety of applications, allowing you to perform complex machining tasks with ease.

The UMC750 features a 5-axis system that offers greater control and precision for producing intricate parts. With a robust spindle speed, it accommodates different materials ranging from metals to composites, making it adaptable for industrial use.

Included in this package is a user-friendly control panel that simplifies operations. The intuitive interface helps in programming and executing machining tasks, reducing setup time significantly. This feature is particularly useful for small to medium-sized production runs.

Despite being used, this machine has been well cared for, with regular servicing to ensure its operational readiness. The maintenance logs are available upon request, providing transparency regarding its service history.

The machine’s compact design allows for easy installation in various shop floor environments. Its space-efficient footprint makes it a good choice for workshops with limited space.

This HAAS UMC750 is available for purchase at a competitive price, offering a cost-effective solution for manufacturers looking to upgrade their capabilities without the expense of a new machine.

For further inquiries or to schedule a viewing, please contact us. This HAAS UMC750 could be the next step forward in your production workflow.
