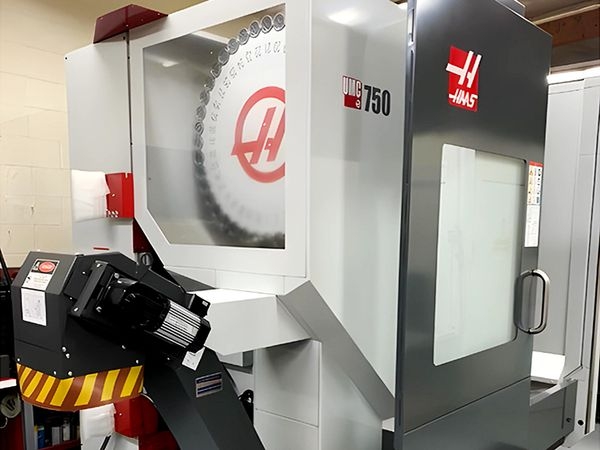

HAAS UMC750 CNC Mill

X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40 CT
Tool Changer: 50 ATC
Spindle Nose to Platter 24"
Spindle Nose to Platter 4"
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf

B AXIS TILT
Travel 120 ° to 35- °
Max Speed 50 ° sec
Max Torque 2240 ft-lbf
Brake Torque 2000 ft-lbf

C AXIS ROTATION
Travel 360 °
Max Speed 50 ° sec
Max Torque 1854 ft-lbf
Max Part Swing 27"
Brake Torque 900 ft-lbf

TOOL CHANGER
Capacity 50+1
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 12"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip ) 3.6 s
Table Size: 24.8" x 19.7"
Weight: 18,000 LBS

Probe
Chip Conveyor
Programmable Coolant
5 Axis
High speed machining
Belt-type chip conveyor
programable coolant nozzle
CNC control cabinet cooler
50+1 side mount tool changer
Next Gen Controller
