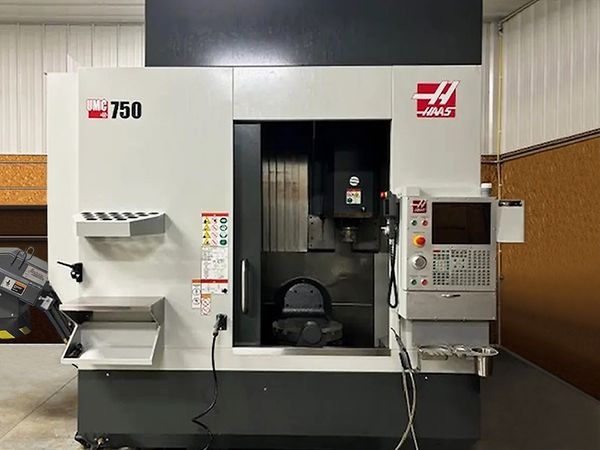

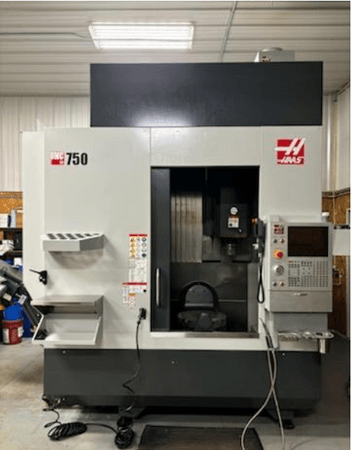

HAAS UMC750 CNC Mill

X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Spindle Nose to Platter 24"
Spindle Nose to Platter 4"
Max Torque 90 ft-lbf
Max Cutting 650 ipm
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf

B AXIS TILT
Travel 120 ° to 35- °
Max Speed 50 ° sec
Max Torque 2240 ft-lbf
Brake Torque 2000 ft-lbf

C AXIS ROTATION
Travel 360 °
Max Speed 50 ° sec
Max Torque 1854 ft-lbf
Max Part Swing 27"
Brake Torque 900 ft-lbf

TOOL CHANGER
Capacity 30+1
Max Tool Diameter 2.5"
Max Tool Diameter 5"
Max Tool Length 12"
Max Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip ) 3.6 s
Weight: 14,500 LBS

Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
15,000 RPM Spindle
1,000 PSI Thru Spindle Coolant
Belt-type chip conveyor
WIPS & Tool Presetter (Spindle probe not included)
High Speed Machining
Wifi camera
Through tool air blast
32 BG expanded memory
Coolant maintenance package
