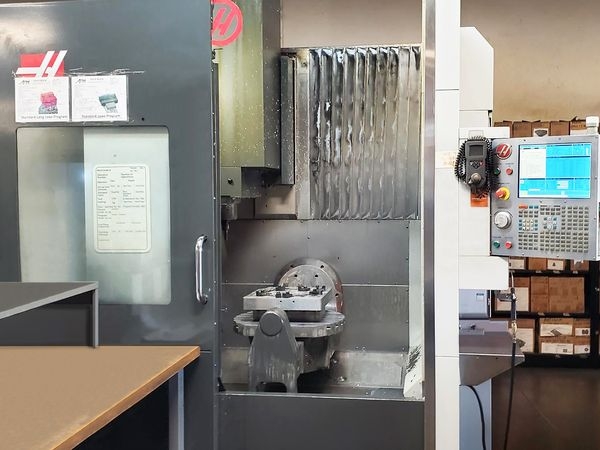

HAAS UMC750SS CNC Mill

X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s

B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf

C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"

Dimensions: 160" x 96" x 110"
Weight: 19,100 LBS

HAAS CNC Control
5 Axis
