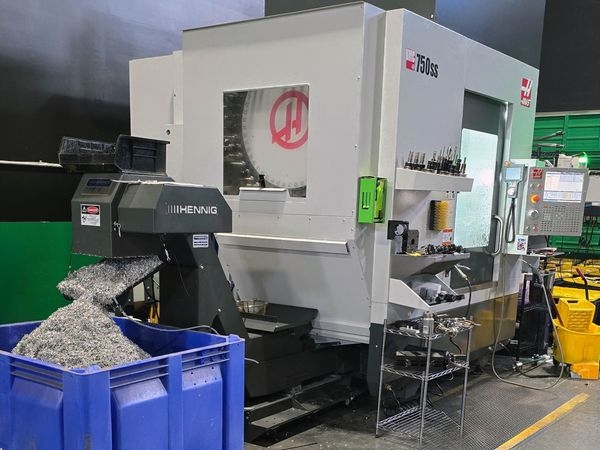

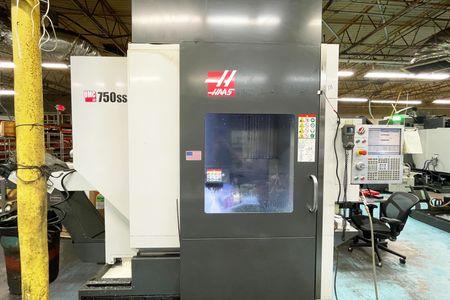

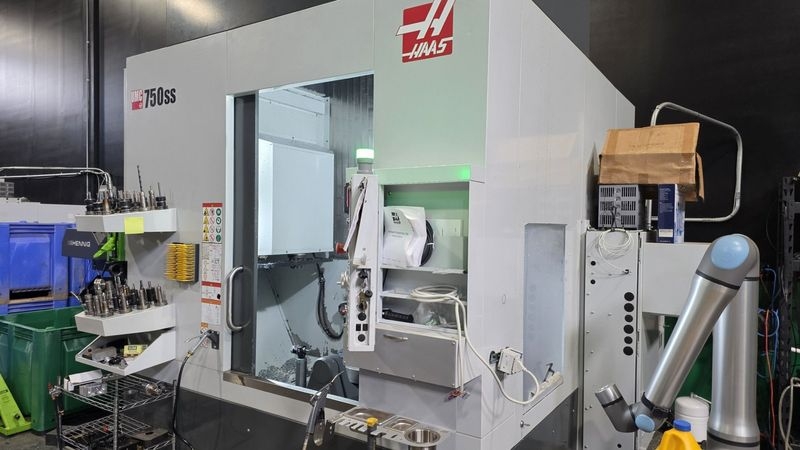

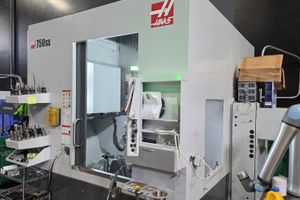

This 2022 HAAS UMC750SS Vertical Machining Center stands out with its advanced features and capabilities, making it a solid choice for any machining operations. It comes equipped with a Probe and a Chip Conveyor, both of whic...Read More
Seller Needs:
Payment:
Call For Financing
Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Dimensions: 160" x 96" x 110"
Weight: 19,100 LBS
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Tool Changer: 40 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s
B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf
C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"
Dimensions: 160" x 96" x 110"
Weight: 19,100 LBS
Options:
Probe
Chip Conveyor
Coolant Thru Spindle
5 Axis
Macros
Rotation and Scaling
Rigid Tapping
TCPC and DWO
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
Fourth Axis
Max Memory: 1 GB
Wireless Networking
Compensation Tables
12,000 RPM Spindle
Chip Conveyor
Coolant Thru Spindle
5 Axis
Macros
Rotation and Scaling
Rigid Tapping
TCPC and DWO
M19 Spindle Orientation
High Speed Machining
VPS Editing
Media Display
Fourth Axis
Max Memory: 1 GB
Wireless Networking
Compensation Tables
12,000 RPM Spindle
