Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 20"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,200 IPM
Rapid Rate Y Axis: 1,200 IPM
Rapid Rate Z Axis: 1,200 IPM
Max Table Load: 660 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 50+1 ATC
Max Cutting 650 ipm
Spindle Nose to Platter 4" -24"
Max Torque 90 ft-lbf
Platter Diameter 19.7"
Max Weight on Platter 660 lb
Max Thrust X 2750 lbf
Max Thrust Y 2750 lbf
Max Thrust Z 3400 lbf
Tool Weight 12 lb
Tool-to-Tool 2.8 s
Chip-to-Chip 3.6 s

B AXIS: ROTATION
Travel 120 ° to 35- °
Max Speed 150 °/sec
Max Torque 1200 ft-lbf
Brake Torque 4300 ft-lbf

C AXIS: ROTATION
Travel 360 °
Max Speed 150 °/sec
Max Torque 450 ft-lbf
Brake Torque 3300 ft-lbf
Max Swing 27"

Options:
Haas Next Gen CNC Control
Probe
Chip Conveyor
Coolant Thru Spindle
Programmable Coolant
4th Axis Rotary Table
5 Axis
1000 PSI Through Spindle Coolant
50+1 Side Mount Tool Changer
15,000 RPM Spindle
Through Tool Air-Blast
Coolant Skimmer
Compensation Tables
Wireless Networking
Cabinet Chiller
Only 646 Cutting Hours
Cost New from Haas $289,960
Description:

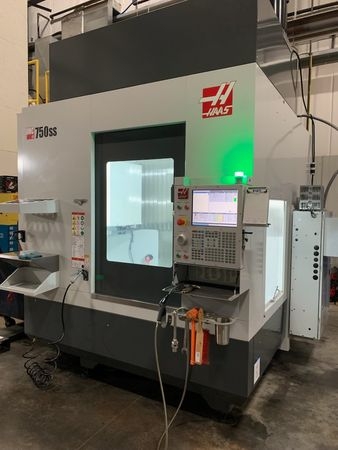

This 2022 HAAS UMC750SS Vertical Machining Center is a great choice for any manufacturing operation seeking advanced capabilities. With its numerous options and upgrades, this machine is designed to enhance productivity and operational flexibility.

The machining center comes equipped with a robust probe system, ensuring precise measurements and alignment. It also features a chip conveyor that helps to efficiently manage and remove chips from the workspace, maintaining a clean working environment.

For enhanced coolant delivery, the machine is outfitted with coolant thru spindle and programmable coolant, allowing for optimal temperature control and tool longevity. The 1000 PSI through spindle coolant system further ensures effective cooling during intensive machining processes.

In addition to its powerful cooling capabilities, this machine features a 15,000 RPM spindle, facilitating high-speed machining of parts. The unit also boasts a 50+1 side mount tool changer, enabling quick tool swaps and minimizing downtime.

The inclusion of a 4th axis rotary table and 5-axis functionality lends additional versatility to this machine, making it suitable for more complex geometries and intricate components. The through tool air-blast option aids in clearing chips from the workpiece, further improving machining accuracy.

A coolant skimmer is present to help manage and remove excess coolant, ensuring the consistency of fluids in the system. Compensation tables are included, which allow for adjustments and corrections in the machining process to maintain the desired outcome.

The machine also features wireless networking capabilities, providing ease of access for program transfer and system monitoring, further enhancing workflow integration.

This HAAS UMC750SS is well-equipped to handle diverse machining tasks with its advanced features and design. Ideal for any shop looking to expand its machining capabilities with a modern, sophisticated center.
