Seller Needs:
$215,500|
156
|
3

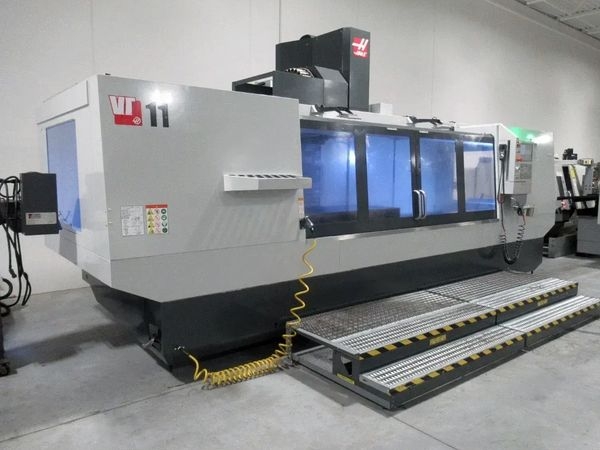

This 2021 HAAS VF11 offers a robust solution for your CNC machining needs. Designed to tackle large projects, this machine boasts an impressive working space that can handle sizable workpieces. With its extended travels on ea...Read More
Seller Needs:
Payment:
Specs:
X Axis Travel: 120"
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting 360 ipm
Max Torque 90 ft-lbf
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 120" x 28"
Dimensions: 214" x 120" x 130"
Weight: 33,400 LBS
Y Axis Travel: 40"
Z Axis Travel: 30"
Rapid Rate X Axis: 360 IPM
Rapid Rate Y Axis: 600 IPM
Rapid Rate Z Axis: 600 IPM
Max Table Load: 4,000 LBS
Spindle Motor: 30 HP
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Tool Changer: 30 ATC
Max Cutting 360 ipm
Max Torque 90 ft-lbf
Max Thrust X 3400 lbf
Max Thrust Y 3400 lbf
Max Thrust Z 5600 lbf
Max Tool Length 16"
Max Tool Weight 12 lb
Tool-to-Tool (avg) 2.8 s
Chip-to-Chip (avg) 3.6 s
Table Size: 120" x 28"
Dimensions: 214" x 120" x 130"
Weight: 33,400 LBS
Options:
HAAS CNC Control
Probe
Chip Auger
15k RPM
Probe
Chip Auger
15k RPM
Seller:
MarkP815
Location:
USA
