Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 7,500 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Weight: 7,500 LBS
Options:
Programmable Coolant
10,000 RPM Spindle
Coolant Pan with Pump
Chip Auger
Description:

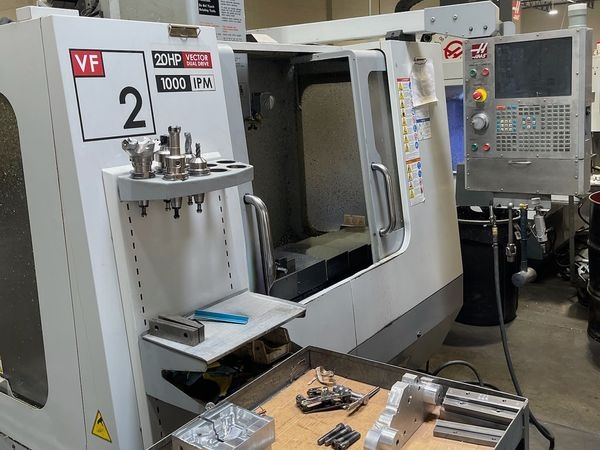

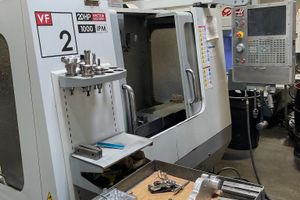

This 2007 HAAS VF2 Vertical Machining Center comes with key extras for shop work.

Options and upgrades include Programmable Coolant to aim flow at the cut, a 10,000 RPM Spindle for a wide speed range, a Coolant Pan with Pump to move coolant, and a Chip Auger to push chips out of the work area.

The machine is used and shows normal marks from shop use. Covers and panels show wear. The control is intact. No parts appear to be missing.

Good for small runs of parts in metal or plastic. Includes the options listed above. Ask for more info, photos, or a video.

Sale is final with no returns. Buyer handles loading and shipping. We can set up a time to see it.
