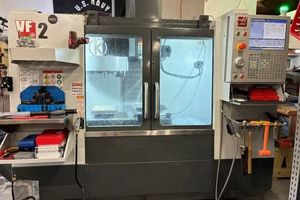

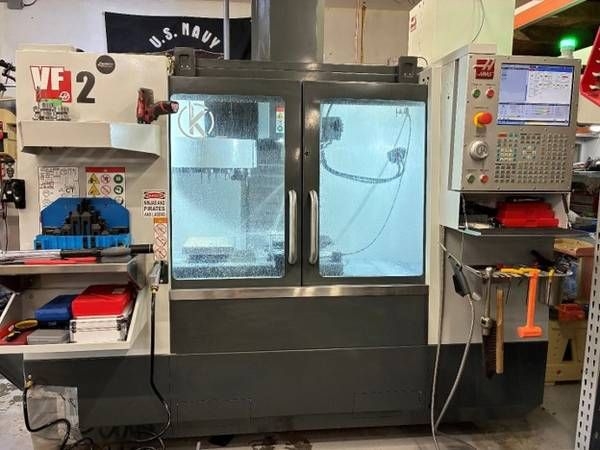

2021 HAAS VF2

X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,000 IPM
Rapid Rate Y Axis: 1,000 IPM
Rapid Rate Z Axis: 1,000 IPM
Max Table Load: 3,000 LBS
Spindle Motor: 20 HP
Spindle Speed: 8,000 RPM
Spindle Taper: 40
Tool Changer: 21 ATC
Max Torque: 90 ft-lbf
Max Thrust X: 2550 lbf
Max Thrust Y: 2550 lbf
Max Thrust Z: 4200 lbf
Max Tool Diameter: 3.5"
Max Tool Weight: 12 lb
Tool-to-Tool (avg): 4.2 s
Chip-to-Chip (avg): 4.5 s
Table Size: 36" x 14"
Dimensions: 101" x 99" x 101"
Weight: 8,500 LBS

HAAS CNC Control
Probe
Programmable Coolant
NGC controller with Visual Programming System
Renishaw Wireless Intuitive Probing system
Chip Auger
Enclosure Exhaust System
4th Axis Drive and Wiring
Through Spindle Coolant Ready
Auxiliary Coolant Filter
Included Vises, Hardware, and Tooling
Orange Vise Co. Dual Station Vise
Kurt 6” DX6 Vise w/ 9” opening
Pierson Pallet System
Phase Technologies 3Phase Solid State Inverter
81pcs New Endmill and Specialty Cutter Bits
HAAS Renishaw Probe Calibration Kit
10pc CAT40 ER32 collet w/ through coolant pull studs
10pc CAT40 ER16 collet w/ Through coolant pull studs
58pc T-slot Clamping kit
Kurt Parrallel separators 3pcs
Kurt Parrallel Jaw plat set
Zebra Refractometer 0-32% Brix
