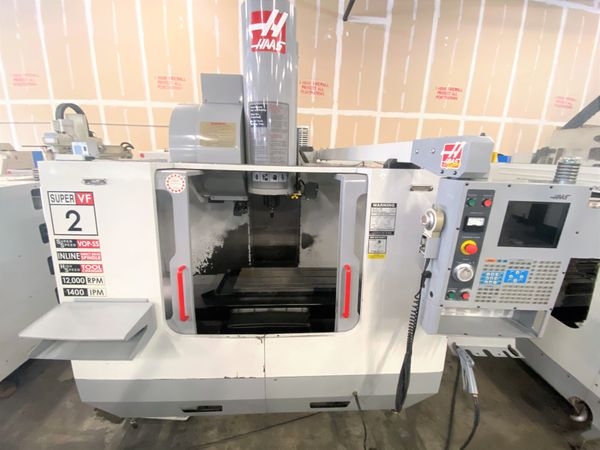

Used HAAS VF2SS Vertical Machining Center
Pre-owned HAAS VF2SS 2003 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Pennsylvania. This HAAS Vertical Machining Center is available for a limited time.Get a quote today on this VF2SS before it's gone.
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
Haas CNC Control
Programmable Coolant
Chip Auger
Coolant Nozzle
16MB Memory
Quick Code
Floppy Disc
Spindle Orientation
4th Axis Drive
Rotation & Scaling
Remote Jog
Macros
High Speed Machining
Auxiliary Coolant Filter
Programmable Coolant
Chip Auger
Coolant Nozzle
16MB Memory
Quick Code
Floppy Disc
Spindle Orientation
4th Axis Drive
Rotation & Scaling
Remote Jog
Macros
High Speed Machining
Auxiliary Coolant Filter
Owner:
Fred (Located in USA)
