Hello!

Machine Overview

Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
HAAS CNC Control
Probe
Programmable Coolant
4th Axis Rotary Table
Chip Auger
1,400 IPM
Renishaw Tool Touch Only (No Part Probe)
Description:

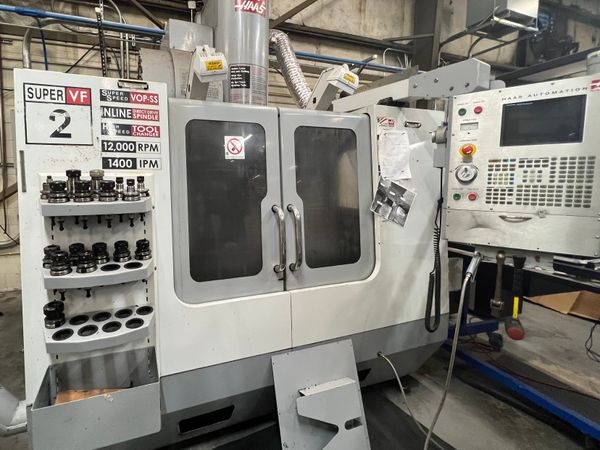

This 2006 HAAS VF2SS Vertical Machining Center is a great choice for any shop. With a 30" x 16" x 20" travel, this machine is capable of handling a variety of jobs. The 36" x 18" table can handle up to 1,500 lbs of material, and the 30 HP spindle motor can reach speeds of up to 12,000 RPM. The 24 ATC tool changer allows for quick and easy tool changes, and the HAAS CNC control provides precise and accurate control. This machine also comes with a number of options, including a probe, programmable coolant, and a 4th axis rotary table. With a maximum cutting speed of 833 ipm, a maximum weight of 1,500 lbs, and a maximum thrust of 1995 lbf in the X and Y axes and 3085 lbf in the Z axis, this machine is sure to get the job done quickly and accurately. The chip-to-chip time is 3.6 seconds, making it a great choice for high-volume production. This 2006 HAAS VF2SS Vertical Machining Center is a great choice for any shop looking for a reliable and efficient machine.
