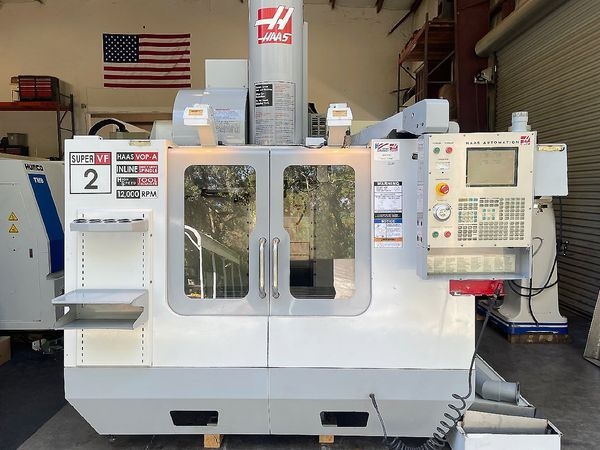

Pre-owned HAAS VF2SS 2006 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a HAAS CNC Control control. This CNC Machine is currently located in Florida. This HAAS Vertica...Read More
Notify Me:
Specs:
Table Size: 36" x 18"
Max Table Load: 3,000 LBS
X-Axis Travels: 30"
Y-Axis Travels: 16"
Z-Axis Travels: 20"
Spindle Nose to Table Top: 4" - 24"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Spindle Motor: 30 HP
Tool Changer: 24 + 1 ATC
Equipped With:
Haas CNC Control
Sidemount ATC
Programmable Coolant
Rigid tapping
Chip Auger
Control Options Include:
DNC, M19 spindle orient, Quick code
Intuitive Programming System
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Max Table Load: 3,000 LBS
X-Axis Travels: 30"
Y-Axis Travels: 16"
Z-Axis Travels: 20"
Spindle Nose to Table Top: 4" - 24"
Spindle Speed: 12,000 RPM
Spindle Taper: CAT40
Spindle Motor: 30 HP
Tool Changer: 24 + 1 ATC
Equipped With:
Haas CNC Control
Sidemount ATC
Programmable Coolant
Rigid tapping
Chip Auger
Control Options Include:
DNC, M19 spindle orient, Quick code
Intuitive Programming System
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
Options:
HAAS CNC Control
Programmable Coolant
Chip Auger
IPS, DNC, M19, Spindle Orientation, Quick Code
6,777 Spindle Hours
Programmable Coolant
Chip Auger
IPS, DNC, M19, Spindle Orientation, Quick Code
6,777 Spindle Hours
