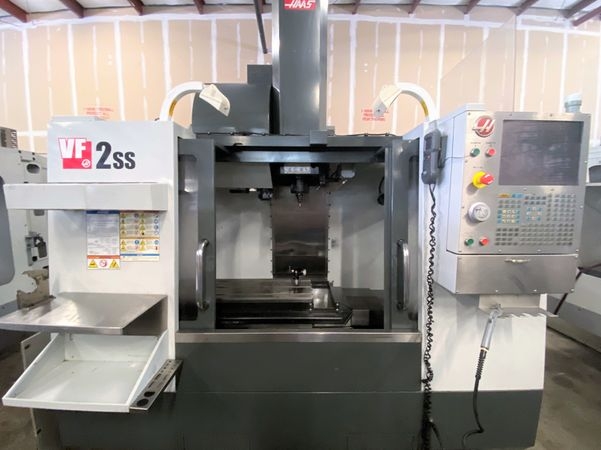

Pre-owned HAAS VF2SS 2010 Vertical Machining Center. This Vertical Machining Center has average cutting time and is equipped with a Haas CNC Control control. This CNC Machine is currently located in Pennsylvania. This HAAS Vertical Machining Center is available for a limited time. Get a quote today on this VF2SS before it's gone.
Notify Me:
Specs:
X Axis Travel: 30"
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
s/n # 1079265
SERVO ON TIME @ 2639
MOTION ON TIME @ 796
SPINDLE ON TIME @ 822
SERVICE RECORDS
Service History for Haas VF-2SS, S/N 1079265
8/13/10 New Machine Installation
11/19/10 Service Visit…Spindle Replaced
2/18/11 Telephone Support…Intermittent Chirping Noise Reported
5/16/13 Service Visit…Spindle Motor & Tool Release Solenoid Replaced
2/20/14 Telephone Support…Corrupt Program Alarm, Resolved on Phone
9/16/14 Telephone Support…Corrupt Program Alarm, Resolved on Phone
12/12/18 Service Visit…Replace Control Batteries
2/20/20 Telephone Support…Spindle Drive Alarms Cleared after Temperature in Shop Warmed Up.
2/24/20 Service Visit…Vector Drive Replaced
Y Axis Travel: 16"
Z Axis Travel: 20"
Rapid Rate X Axis: 1,400 IPM
Rapid Rate Y Axis: 1,400 IPM
Rapid Rate Z Axis: 1,400 IPM
Table Size: 36" x 18"
Max Table Load: 1,500 LBS
Spindle Motor: 30 HP
Spindle Speed: 12,000 RPM
Spindle Taper: 40 CT
Tool Changer: 24 ATC
Max Cutting 833 ipm
Max Weight 1500 lb
Max Thrust X 1995 lbf
Max Thrust Y 1995 lbf
Max Thrust Z 3085 lbf
Chip-to-Chip 3.6 s
Coolant Cap 55 gal
Amps 3 Phase 35A (High)
Dimensions: 106" x 101" x 101"
Weight: 7,800 LBS
s/n # 1079265
SERVO ON TIME @ 2639
MOTION ON TIME @ 796
SPINDLE ON TIME @ 822
SERVICE RECORDS
Service History for Haas VF-2SS, S/N 1079265
8/13/10 New Machine Installation
11/19/10 Service Visit…Spindle Replaced
2/18/11 Telephone Support…Intermittent Chirping Noise Reported
5/16/13 Service Visit…Spindle Motor & Tool Release Solenoid Replaced
2/20/14 Telephone Support…Corrupt Program Alarm, Resolved on Phone
9/16/14 Telephone Support…Corrupt Program Alarm, Resolved on Phone
12/12/18 Service Visit…Replace Control Batteries
2/20/20 Telephone Support…Spindle Drive Alarms Cleared after Temperature in Shop Warmed Up.
2/24/20 Service Visit…Vector Drive Replaced
Options:
Haas CNC Control
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
Probe
Programmable Coolant
Chip Auger
High Intensity Lighting
